Description
Product Overview

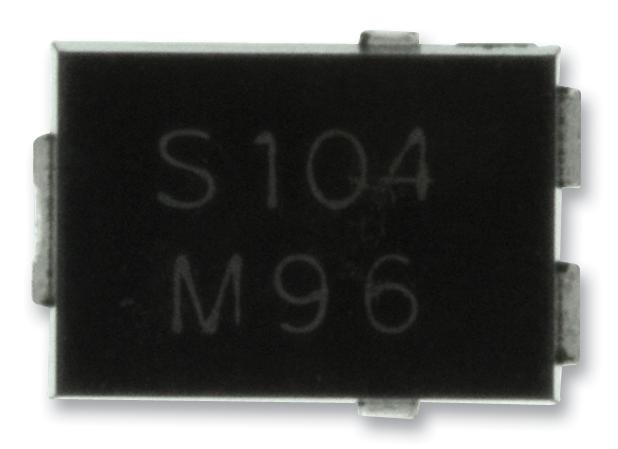

The SS5P10-M3/86A is a surface-mount high-current density Schottky Barrier Rectifier with solderable matte tin-plated terminals. It is suitable for use in high-frequency rectifier of switching mode power supplies, free-wheeling diodes, DC/DC converters and polarity protection application.
- Very low-profile
- Ideal for automated placement
- Guard-ring for overvoltage protection
- Low forward-voltage drop, low power losses
- High efficiency
- Low thermal resistance
- AEC-Q101 qualified
Applications
Power Management, Automotive, Commercial, Industrial
Product details
| Repetitive Peak Reverse Voltage | 100V |
| Diode Configuration | Single Dual Anode |
| No. of Pins | 3Pins |
| Forward Surge Current | 150A |
| Diode Mounting | Surface Mount |
| Qualification | - |
| Average Forward Current | 5A |
| Diode Case Style | TO-277A |
| Forward Voltage Max | 880mV |
| Operating Temperature Max | 150°C |
| Product Range | SS5P1 |
| SVHC | Lead (04-Feb-2026) |
Other details
| Brand | VISHAY |
| Part Number | SS5P10-M3/86A |
| Quantity | Each |
| Technical Data Sheet (133.00B) EN | View or download |
| Product Change Notice (126.58KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 143.04 |
| 3-5 | ₹ 141.58 |
| 5-10 | ₹ 138.66 |
| 10+ | ₹ 135.74 |
Bulk discount will be automatically applied during checkout based on quantity.
