Description
Product Overview

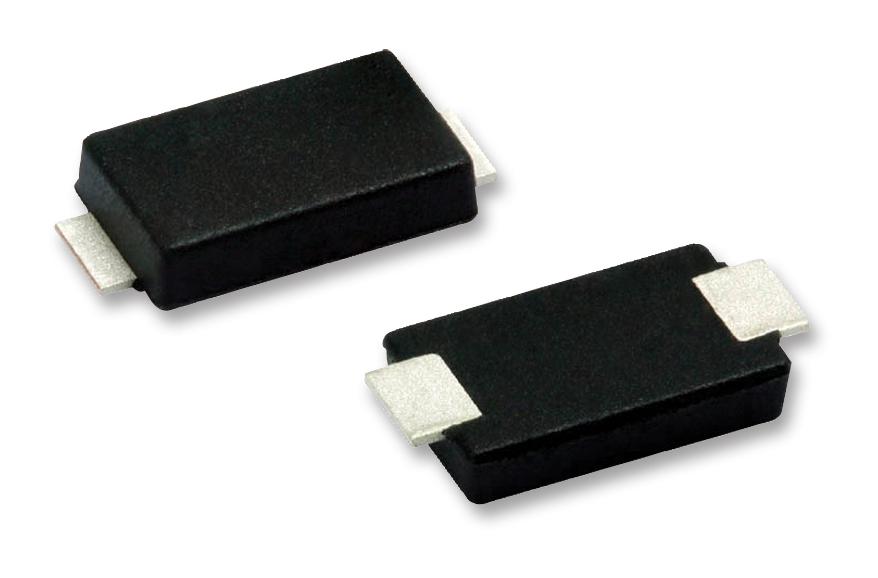

The RGF1D-E3/67A is a surface-mount glass-passivated junction Fast Switching Rectifier with moulded epoxy over glass body case and solderable matte tin-plated leads. It comes with two bands indicate cathode end - 1st band denotes device type and 2nd band denotes repetitive peak reverse voltage rating. It is suitable for use in fast-switching rectification of power supply, inverters, converters and freewheeling diodes applications.
- Superectifier structure for high reliability condition
- Ideal for automated placement
- Fast switching for high efficiency
- Low leakage current
- High forward surge capability
Applications
Industrial, Consumer Electronics, Communications & Networking, Automotive, Power Management, Commercial
Product details
| Repetitive Peak Reverse Voltage | 200V |
| Diode Configuration | Single |
| Reverse Recovery Time | 150ns |
| Operating Temperature Max | 175°C |
| No. of Pins | 2Pins |
| Qualification | - |
| Average Forward Current | 1A |
| Forward Voltage Max | 1.3V |
| Forward Surge Current | 30A |
| Diode Case Style | DO-214BA |
| Product Range | RGF1D |
| SVHC | Lead (04-Feb-2026) |
Other details
| Brand | VISHAY |
| Part Number | RGF1D-E3/67A |
| Quantity | Each |
| Product Change Notice (51.64KB) EN | View or download |
| Technical Data Sheet (133.00B) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 220.25 |
| 3-5 | ₹ 218.0 |
| 5-10 | ₹ 213.5 |
| 10+ | ₹ 209.01 |
