Description
Product Overview

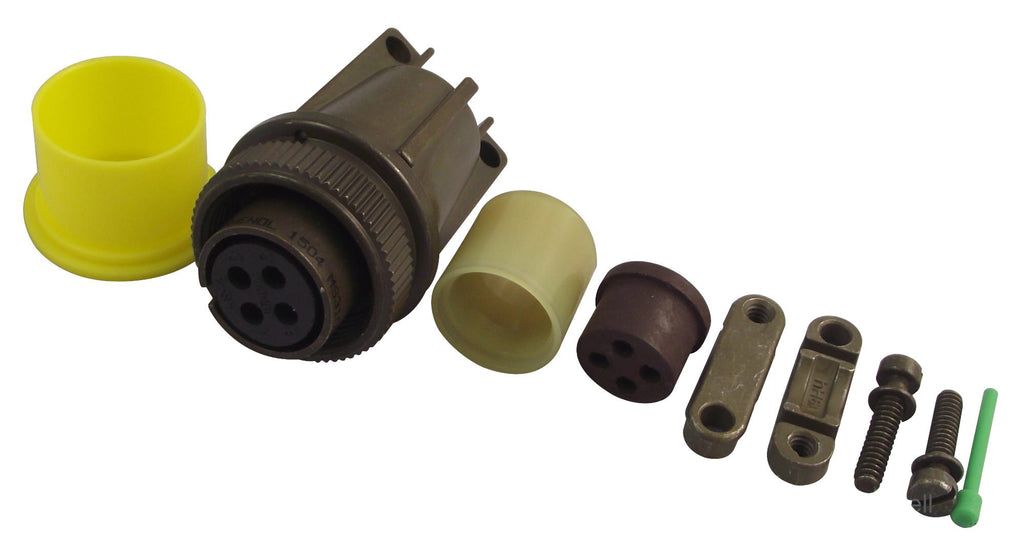

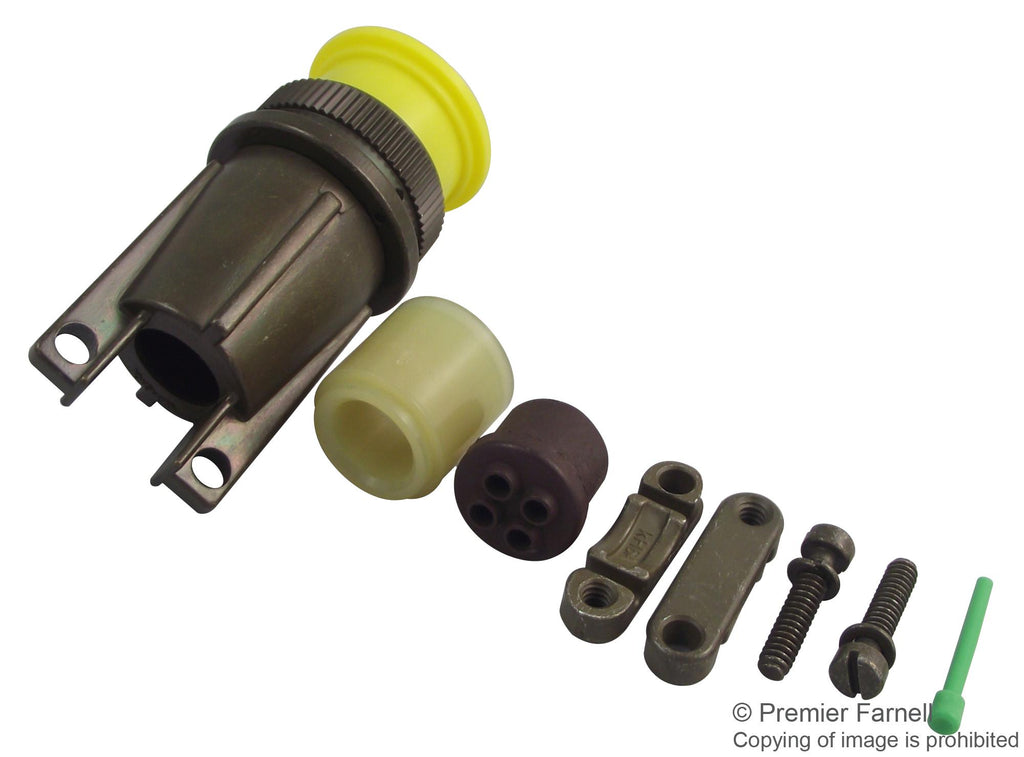

The MS3106E14S-2S is a 4-contact military standard Circular Connector with silver-plated copper contacts, straight plug, environment-resistant, 14S-2 insert arrangement and socket contact type. Shell components are fabricated from high grade aluminium alloy. The standard hardware plating is electrically conductive cadmium-plated finish with an olive drab chromate after-treatment for corrosion resistance. Resilient neoprene inserts provide an outstanding moisture barrier, high dielectric strength and resistance to vibration. This connector represents well-proven electrical capability at an acceptable cost for most equipment where durability is important. MIL-C-5015 features threaded coupling, single key and keyway polarization representing maximum simplicity in design. This connector is recommended for conditions where vibration, moisture, pressure and temperature are extreme. Suitable for ordnance and shipboard installation.
- Medium to heavy weight cylindrical
- Durable and field-proven design
- 3000VAC (RMS) at Sea level operating voltage
- Split end bell service class
Applications
Aerospace, Defence, Military
Product details
| Military Specification | MIL-DTL-5015 Series |
| Circular Connector Contact Type | Solder Socket |
| Insert Arrangement | 14S-2 |
| Contact Material | Brass, Copper Alloy |
| Insert Rotation | N |
| Circular Connector Shell Style | Straight Plug |
| Coupling Style | Threaded |
| Connector Body Material | Aluminium Alloy Body |
| Contact Plating | Silver |
| Service Class | Environmentally Sealed |
Other details
| Brand | AMPHENOL INDUSTRIAL |
| Part Number | MS3106E14S-2S.. |
| Quantity | Each |
| Manufacturer Catalogue (2.12MB) EN | View or download |
| Technical Data Sheet (2.12MB) EN | View or download |
