Product Overview
Type CFR series is a carbon film fixed resistor. The resistive element comprises a thin film of carbon, deposited onto a high thermal conductivity ceramic core. Metal end caps are force-fitted to the element prior to spiralling to value. Tinned copper lead wires are welded to the end caps and the components are then coated. One coat of phenolic resin is followed by three coats of epoxy resin. Typical applications include audio, communications, measurement and computing.
- Low cost and high reliability
- High power to size ratio
- E24 range series resistor
- Operating temperature range from -55 to +155°C
- Minimum insulation resistance is 10000Mohm
Product details
| Resistance |
22kohm |
| Power Rating |
1W |
| Resistor Case / Package |
Axial Leaded |
| Resistor Technology |
Carbon Film |
| Resistor Type |
High Reliability |
| Product Length |
12mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Product Range |
CFR Series |
| Resistance Tolerance |
± 5% |
| Voltage Rating |
500V |
| Temperature Coefficient |
-450ppm/°C to 0ppm/°C |
| Product Diameter |
5mm |
| Product Width |
- |
| Operating Temperature Max |
155°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details

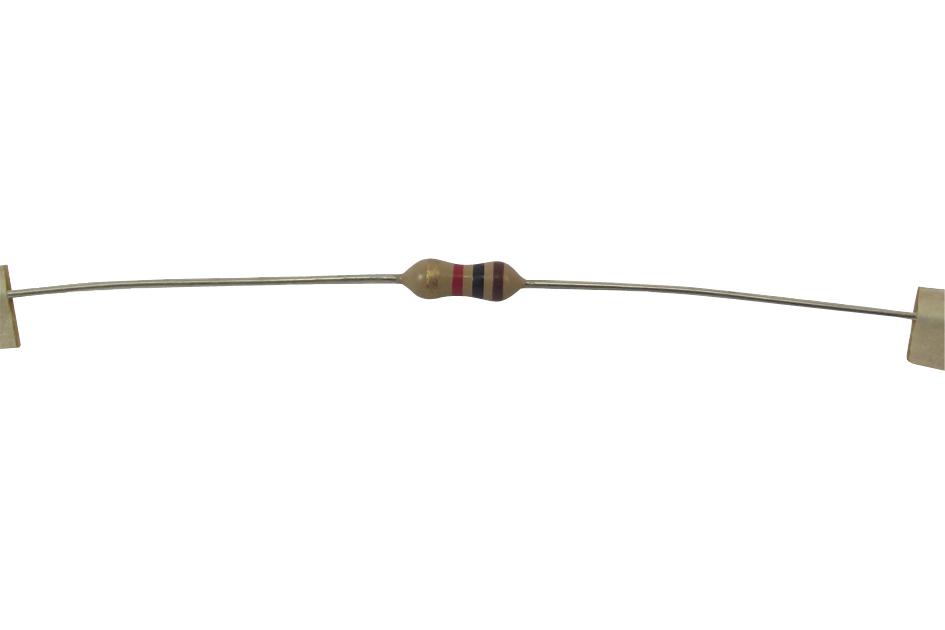

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
