Description
Product Overview
The Transil SM4TY series TVS Diode designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605. The planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide reliability and stability over time.
- 5 to 70V Stand off voltage range
- Unidirectional and bidirectional types
- 270W (10/1000µs) High power capability at Tj max
- -55 to 150°C Operating junction temperature range
Applications
Automotive, Industrial
Product details
| Product Range | Transil SM4TY |
| Reverse Standoff Voltage | 12V |

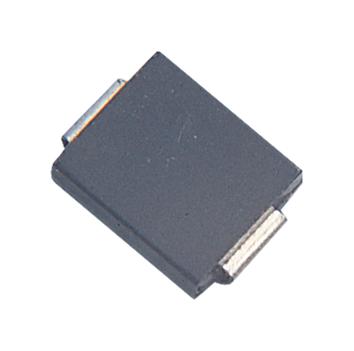

| Diode Case Style | DO-214AC (SMA) |
| Minimum Breakdown Voltage | 13.3V |
| Peak Pulse Power Dissipation | 400W |
| Diode Mounting | Surface Mount |
| SVHC | No SVHC (25-Jun-2025) |
| TVS Polarity | Bidirectional |
| Clamping Voltage Max | 25.3V |
| No. of Pins | 2Pins |
| Maximum Breakdown Voltage | 14.7V |
| Operating Temperature Max | 150°C |
| Qualification | AEC-Q101 |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | SM4T14CAY |
| Quantity | Each |
| Technical Data Sheet (637.55KB) EN | View or download |
| Product Change Notice (1.46MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
