Description
Product Overview
The Transil SM6T series TVS Diode designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2 and MIL STD 883, method 3015 and electrical overstress according to IEC 61000-4-4 and 5. It is generally used against surges below 600W (10/1000µs). Planar technology makes these devices suitable for high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
- 6.8 to 220V Breakdown voltage range
- Unidirectional and bidirectional types
- 515W (10/1000µs) High power capability at Tj max
- -55 to 150°C Operating junction temperature range
Applications
Automotive, Power Management, Industrial
Product details
| Product Range | Transil SM6T |
| Reverse Standoff Voltage | 28.2V |

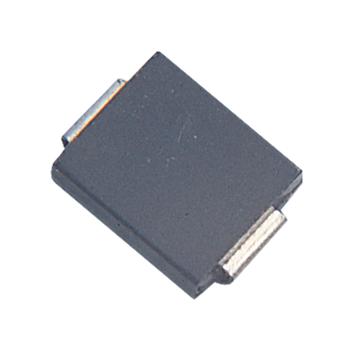

| Diode Case Style | DO-214AA (SMB) |
| Minimum Breakdown Voltage | 31.4V |
| Peak Pulse Power Dissipation | 600W |
| Diode Mounting | Surface Mount |
| SVHC | Lead (21-Jan-2025) |
| TVS Polarity | Unidirectional |
| Clamping Voltage Max | 59V |
| No. of Pins | 2Pins |
| Maximum Breakdown Voltage | 34.7V |
| Operating Temperature Max | 150°C |
| Qualification | AEC-Q101 |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | SM6T33AY |
| Quantity | Each |
| Technical Data Sheet (1004.55KB) EN | View or download |
| Product Change Notice (1.46MB) EN | View or download |
