Product Overview

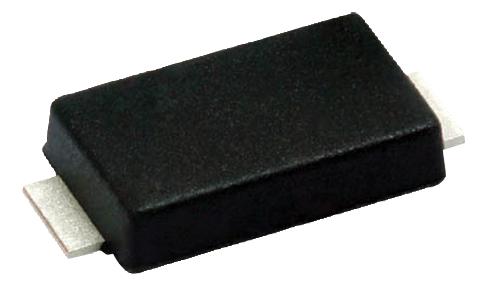

- Surface mount ESD capability rectifier
- Very low profile - typical height of 0.95 mm
- Ideal for automated placement
- Oxide planar chip junction
- Low forward voltage drop, low leakage current
- ESD capability
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Repetitive Peak Reverse Voltage |
400V |
| Diode Configuration |
Single |
| Reverse Recovery Time |
1.5µs |
| Operating Temperature Max |
175°C |
| No. of Pins |
2Pins |
| Qualification |
- |
| Average Forward Current |
3A |
| Forward Voltage Max |
1.1V |
| Forward Surge Current |
40A |
| Diode Case Style |
DO-221AC |
| Product Range |
SE30A |
| SVHC |
Lead (04-Feb-2026) |
Other details
| Brand |
VISHAY |
| Part Number |
SE30AFG-M3/6A |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |
