Description
Product Overview
The SIP32408DNP-T1-GE4 is a slew rate controlled Load Switch designed for 1.1 to 5.5V operation. This device guarantees low switch on-resistance at 1.2V input. They feature a controlled soft-on slew rate of typical 2.5ms that limits the inrush current for designs of heavy capacitive load and minimizes the resulting voltage droop at the power rails. SiP32408 feature a low voltage control logic interface (On/Off interface) that can interface with low voltage control signals without extra level shifting circuit. SiP32408 has exceptionally low shutdown current and provide reverse blocking to prevent high current flowing into the power source.
- Low quiescent current <lt/>1µA when disabled 10.5µA typical at VIN = 1.2V
- Reverse current blocking when switch is off
Applications
Portable Devices, Computers & Computer Peripherals, Industrial, Medical
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Power Load Switch Type | High Side |
| Input Voltage | 5.5V |
| On State Resistance | 0.044ohm |
| No. of Pins | 4Pins |
| On / Enable Input Polarity | Active High |
| Operating Temperature Min | -40°C |
| Qualification | - |
| MSL | MSL 1 - Unlimited |
| Automotive Qualification Standard | - |
| No. of Channels | 1Channels |
| Current Limit | 3.5A |

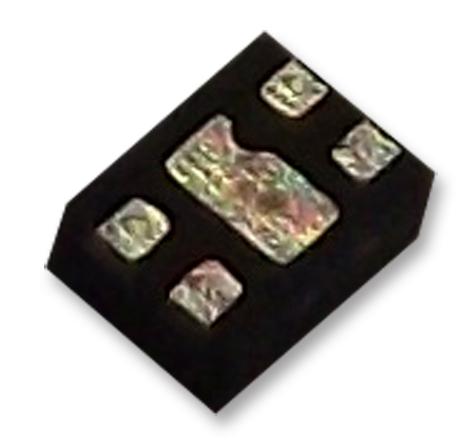

| IC Case / Package | TDFN |
| Thermal Protection | Yes |
| No. of Outputs | 1Outputs |
| Operating Temperature Max | 85°C |
| Product Range | - |
| SVHC | No SVHC (16-Jan-2020) |
| Distribution Switch Case Style | TDFN |
Other details
| Brand | VISHAY |
| Part Number | SIP32408DNP-T1-GE4 |
| Quantity | Each |
| Product Change Notice (27.62KB) EN | View or download |
| Technical Data Sheet (133.00B) EN | View or download |
