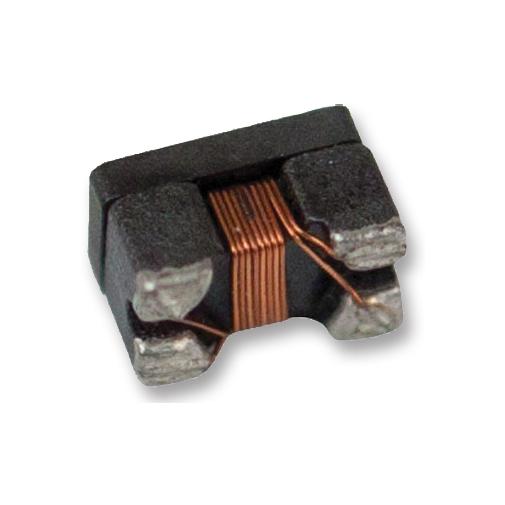

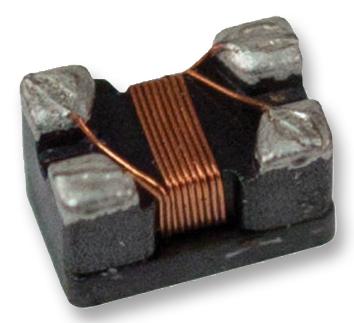

Product Overview
- High speed serial interface common mode choke
- SMT mounting type, 2 number of lines
- 0.40000 ohm maximum DCR, signal line filter type
- 720 ohm impedance (1GHz), 1147MHz peak impedance frequency
- 0.300A maximum rated current, 724ohm typical peak impedance
- 2mm length, 1mm width
- 1 year shelf life
- Operating temperature range from -40 to 125°C
Product details
| DC Current Rating |
300mA |
| DC Resistance Max |
0.4ohm |
| Impedance |
220ohm |
| Product Length |
2mm |
| Product Height |
1.2mm |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (07-Nov-2024) |
| Inductance |
- |
| Product Range |
CM0805 Series |
| Inductor Case / Package |
- |
| Product Width |
1.2mm |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
Other details
| Brand |
LAIRD |
| Part Number |
CM0805C221R-10 |
| Quantity |
Each |
| Technical Data Sheet (157.11KB) EN |
View or download |
