Description
Product Overview

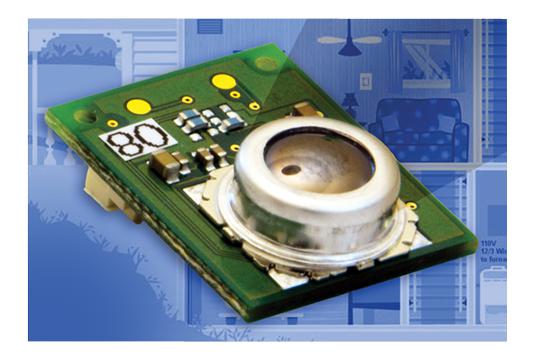

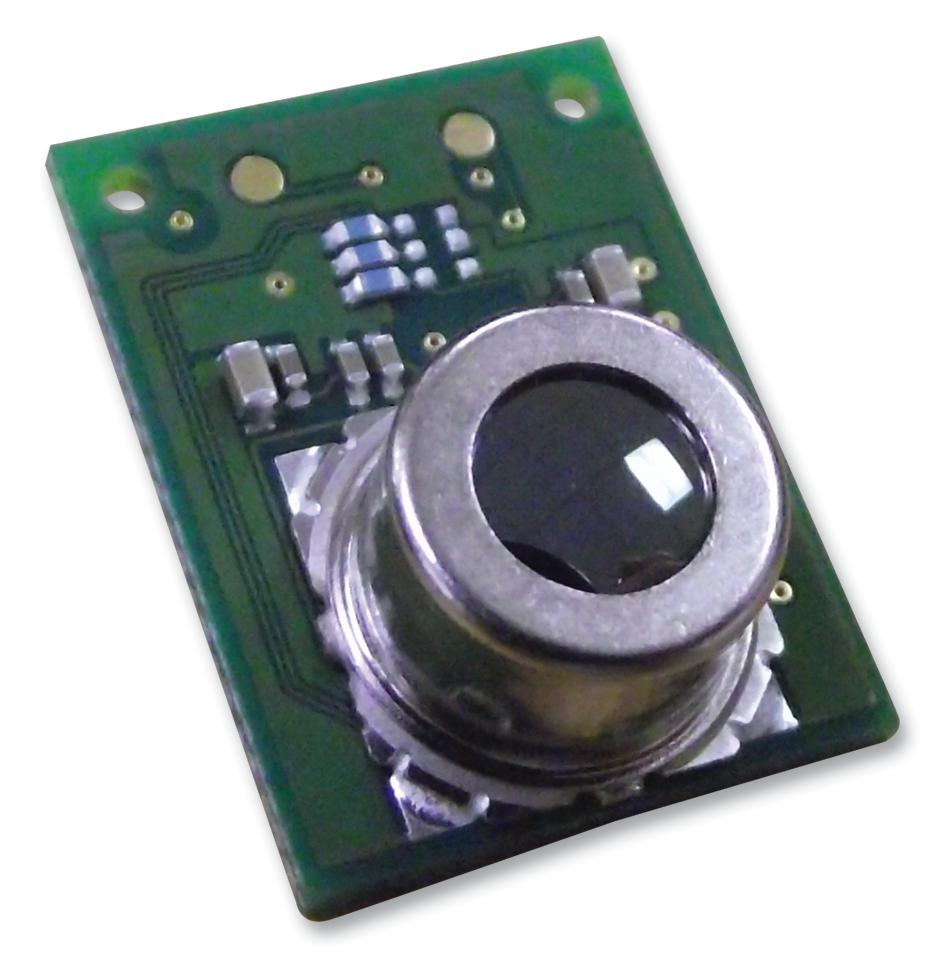

The D6T-44L-06 from Omron is a MEMS thermal sensor. It is small size, high accuracy, low noise, high sensitivity sensor that enables detection of stationary human presence by non contact temperature measurement.
- 4 x 4 element type
- Superior noise immunity with a digital output
- High precision area temperature detection with low cross talk field of view characteristics
- Unique MEMS and ASIC technology achieve a high SNR
- Power supply voltage range from 4.5VDC to 5.5VDC
- Viewing angle in X direction is 44.2° and Y direction 45.7°
- Current consumption is typically 5mA
- I2C digital output
- Hot spot detection
- Variety of pixel arrays available
Applications
Industrial, Consumer Electronics, Portable Devices, Sensing & Instrumentation
Warnings
Do not use the sensor in locations where dust, dirt, oil that will adhere to the lens. This may prevent correct temperature measurements. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Supply Voltage | 5.5VDC |
| Sensing Temperature Max | 50°C |
| Operating Temperature Max | 50°C |
| Sensing Temperature Min | 5°C |
| Operating Temperature Min | 0°C |
Other details
| Brand | ARATAS |
| Part Number | D6T-44L-06 |
| Quantity | Each |
| Technical Data Sheet (821.18KB) EN | View or download |
| Manufacturer Product Page (2.24MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 7230.66 |
| 3-5 | ₹ 7156.87 |
| 5-10 | ₹ 7009.31 |
| 10+ | ₹ 6861.74 |
Bulk discount will be automatically applied during checkout based on quantity.
