Description
Product Overview

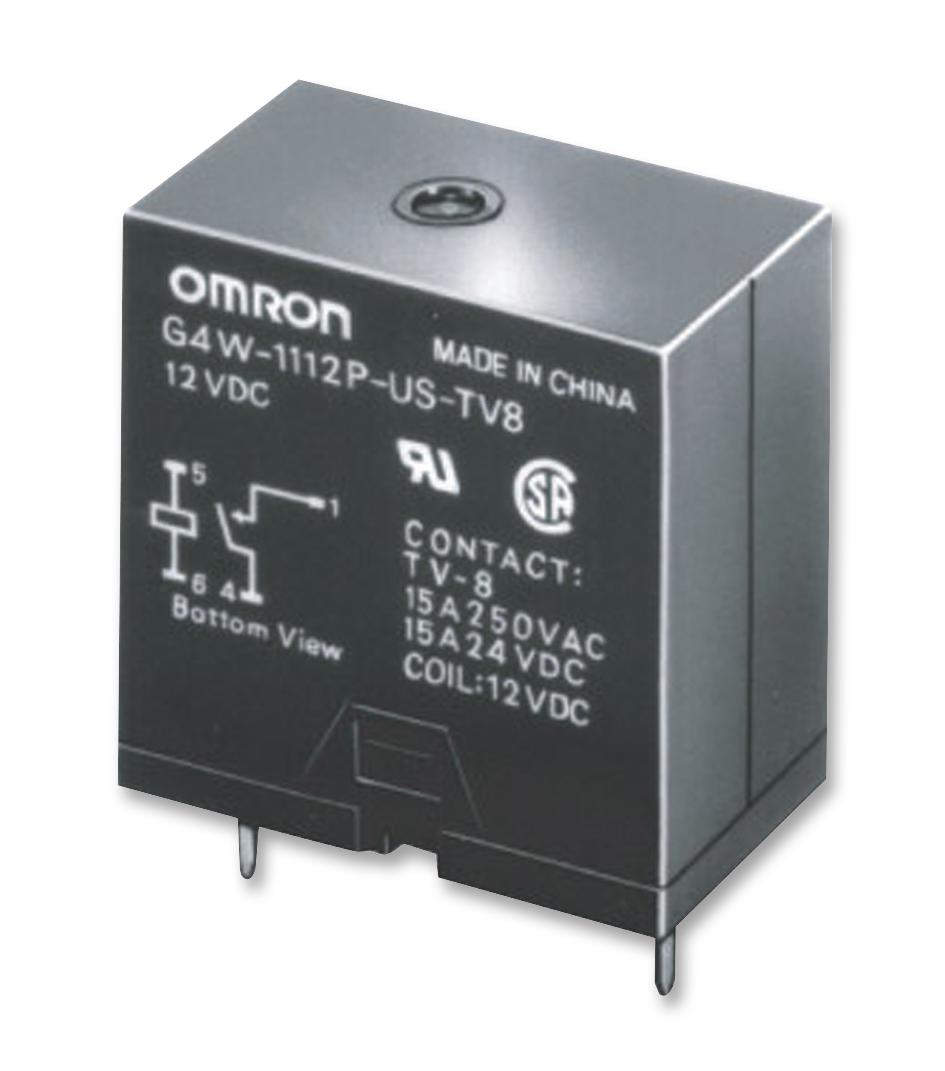

The G4W series PCB Power Relay ideal for power supply switching. The impulse withstands voltage as high as 10 with 4kV dielectric strength.
- Creepage distance of 8mm minimum
- Dielectric strength of 4000VAC minimum
- SPST-NO types conform to TV-8 rating
- DPST-NO types conform to TV-5 rating
- International 2.54mm terminal pitch
Applications
Industrial, Power Management
Product details
| Contact Configuration | DPST-NO |
| Contact Current | 10A |
| Relay Mounting | Through Hole |
| Contact Voltage VAC | 250V |
| Contact Voltage VDC | 24V |
| Coil Resistance | 720ohm |
| Coil Voltage | 24VDC |
| Product Range | G4W Series |
| Coil Type | Non Latching |
| Relay Terminals | Solder |
| Contact Material | Silver Alloy |
| SVHC | No SVHC (17-Dec-2014) |
Other details
| Brand | ARATAS |
| Part Number | G4W2212PUSTV DC24 |
| Quantity | Each |
| Product Change Notice (704.23KB) EN | View or download |
| Technical Data Sheet (749.99KB) EN | View or download |
