Product Overview

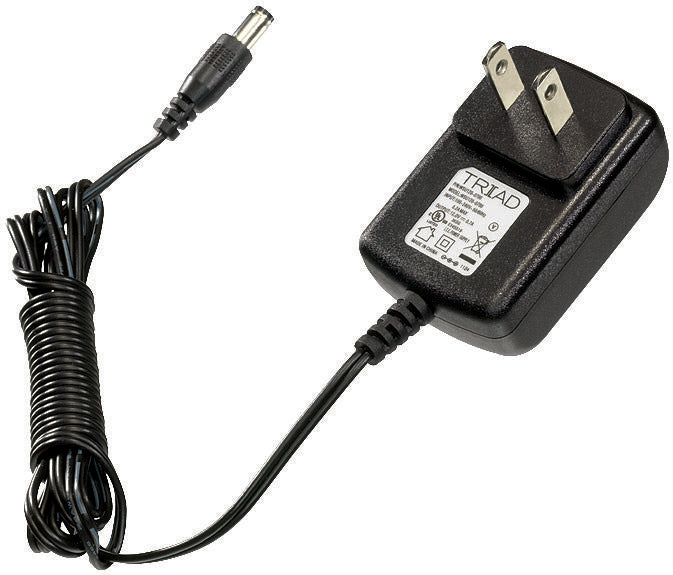

TRIAD MAGNETICS WSU050-1500 AC-DC CONVERTER, EXTERNAL PLUG IN, 1 O/P
Product details
| Power Supply Applications |
ITE |
| Output Power Max |
7.5W |
| Output Current - Output 1 |
1.5A |
| Output Current - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Product Range |
WSU Series |
| SVHC |
No SVHC (17-Jan-2023) |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
5V |
| Output Voltage - Output 2 |
- |
| Output Connector |
Barrel Plug Center Positive 2.1mm x 5.5mm x 11mm |
| Output Current - Output 3 |
- |
| Input Voltage VAC |
100V AC to 240V AC |
| Plug Type |
US |
Other details
| Brand |
TRIAD MAGNETICS |
| Part Number |
WSU050-1500 |
| Quantity |
Each |
| Technical Data Sheet (523.15KB) EN |
View or download |
| Product Change Notice (14.45KB) EN |
View or download |
