Product Overview

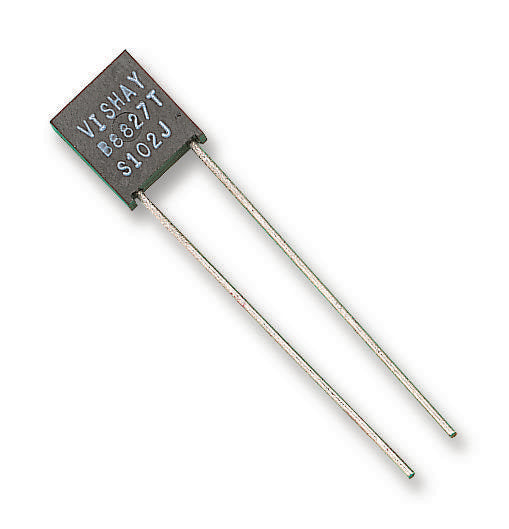

The S series from Vishay are radial leaded, high precision metal foil resistors. These resistors have low TCR, fast response time, low current noise and low thermal EMF. The S series metal foil resistors are used in applications where high precision and high stability is of major concern.
- Resistance value range from 0.5ohm to 1Mohm
- Maximum working voltage of 300V, 350V and 500V
- Power rating is 1W at 125°C
- ±1%, ±0.5%, ±0.1%, ±0.05%, ±0.02%, ±0.01% and ±0.005%tolerance
- Endurance of 2000h at 70°C
Product details
| Resistance |
20kohm |
| Power Rating |
600mW |
| Resistor Case / Package |
Radial Leaded |
| Resistor Technology |
Metal Foil |
| Resistor Type |
High Precision |
| Product Length |
7.62mm |
| Operating Temperature Min |
- |
| Qualification |
- |
| Product Range |
S Series |
| Resistance Tolerance |
± 0.01% |
| Voltage Rating |
300V |
| Temperature Coefficient |
± 3.5ppm/°C |
| Product Diameter |
- |
| Product Width |
2.67mm |
| Operating Temperature Max |
- |
| SVHC |
No SVHC (17-Dec-2014) |
Other details
| Brand |
VPG FOIL RESISTORS |
| Part Number |
Y006220K0000T9L |
| Quantity |
Each |
