Description
Product Overview

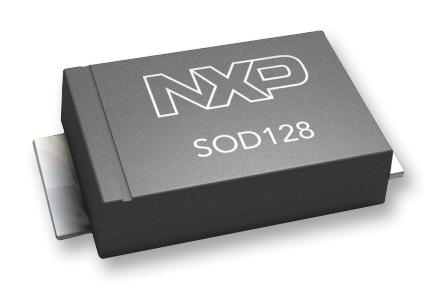

The PTVSxS1UR series unidirectional flat lead low-profile surface-mounted Transient Voltage Suppressor Diode designed for transient overvoltage protection. It is available in 3.3 to 64V reverse standoff voltage range (VRWM).
- 400W Rated peak pulse power (PPPM)
- 350W Rated peak pulse power (PPPM) for 3V3
- 0.001μA Reverse current (IRM)
Applications
Automotive, Automotive, Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range | PTVS5 |
| Reverse Standoff Voltage | 51V |
| Diode Case Style | SOD-128 |
| Minimum Breakdown Voltage | 56.7V |
| Peak Pulse Power Dissipation | 600W |
| Diode Mounting | Surface Mount |
| SVHC | Lead (25-Jun-2025) |
| TVS Polarity | Unidirectional |
| Clamping Voltage Max | 82.4V |
| No. of Pins | 2Pins |
| Maximum Breakdown Voltage | 62.7V |
| Operating Temperature Max | 185°C |
| Qualification | AEC-Q101 |
Other details
| Brand | NEXPERIA |
| Part Number | PTVS51VP1UTP,115 |
| Quantity | Each |
| Product Change Notice (93.03KB) EN | View or download |
| Technical Data Sheet (878.53KB) EN | View or download |
