Description
Product Overview

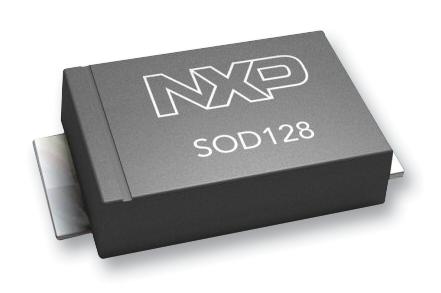

The PMEG4030ETP is a low VF planar maximum efficiency general application (MEGA) Schottky Barrier Rectifier with an integrated guard ring for stress protection. It is encapsulated in a small and flat lead surface-mounted device (SMD) plastic package.
- Average forward current 3 A
- High power capability due to clip-bonding technology
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch mode power supply (SMPS)
- Reverse polarity protection
- Low power consumption
- AEC-Q101 qualified
Applications
Power Management, Automotive, Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Repetitive Peak Reverse Voltage | 40V |
| Diode Configuration | Single |
| No. of Pins | 2Pins |
| Forward Surge Current | 50A |
| Diode Mounting | Surface Mount |
| Qualification | - |
| Average Forward Current | 3A |
| Diode Case Style | SOD-128 |
| Forward Voltage Max | 490mV |
| Operating Temperature Max | 175°C |
| Product Range | PMEG4 |
| SVHC | Lead (25-Jun-2025) |
Other details
| Brand | NEXPERIA |
| Part Number | PMEG4030ETP,115 |
| Quantity | Each |
| Application Note (179.56KB) EN | View or download |
| Technical Data Sheet (414.39KB) EN | View or download |
| Product Change Notice (145.06KB) EN | View or download |
