Description
Product Overview

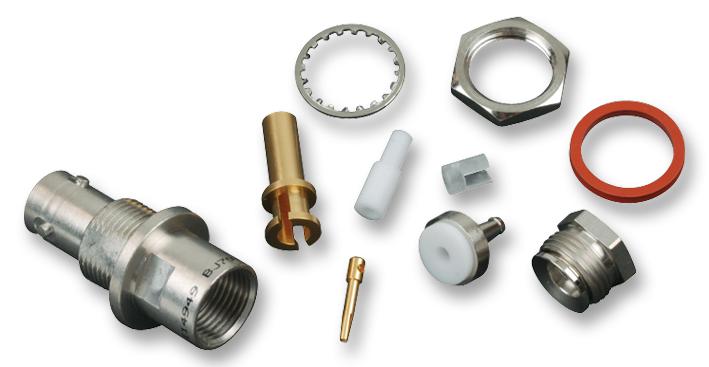

The BJ79-47 is a straight BNC Coaxial Bulkhead Jack with gold-plated beryllium copper contact. It features wrench crimp coaxial termination, twinax/triax impedance and 500MHz maximum frequency. 3-lug for M17/176-00002 cable.
- Nickel-plated brass body
Applications
RF Communications
Product details
| Connector Type | Triaxial |
| Coaxial Termination | Crimp |
| Coaxial Cable Type | - |
| Contact Plating | Gold Plated Contacts |
| Connector Mounting | Cable Mount |
| Connector Body Style | Straight Bulkhead Jack |
| Impedance | 75ohm |
| Contact Material | Beryllium Copper |
| Frequency Max | 500MHz |
| Product Range | - |
Other details
| Brand | TROMPETER - CINCH CONNECTIVITY |
| Part Number | BJ79-47 |
| Quantity | Each |
| Assembly Instructions (153.00B) EN | View or download |
| Drawing (93.00B) EN | View or download |
| Technical Data Sheet (133.00B) EN | View or download |
