Product Overview

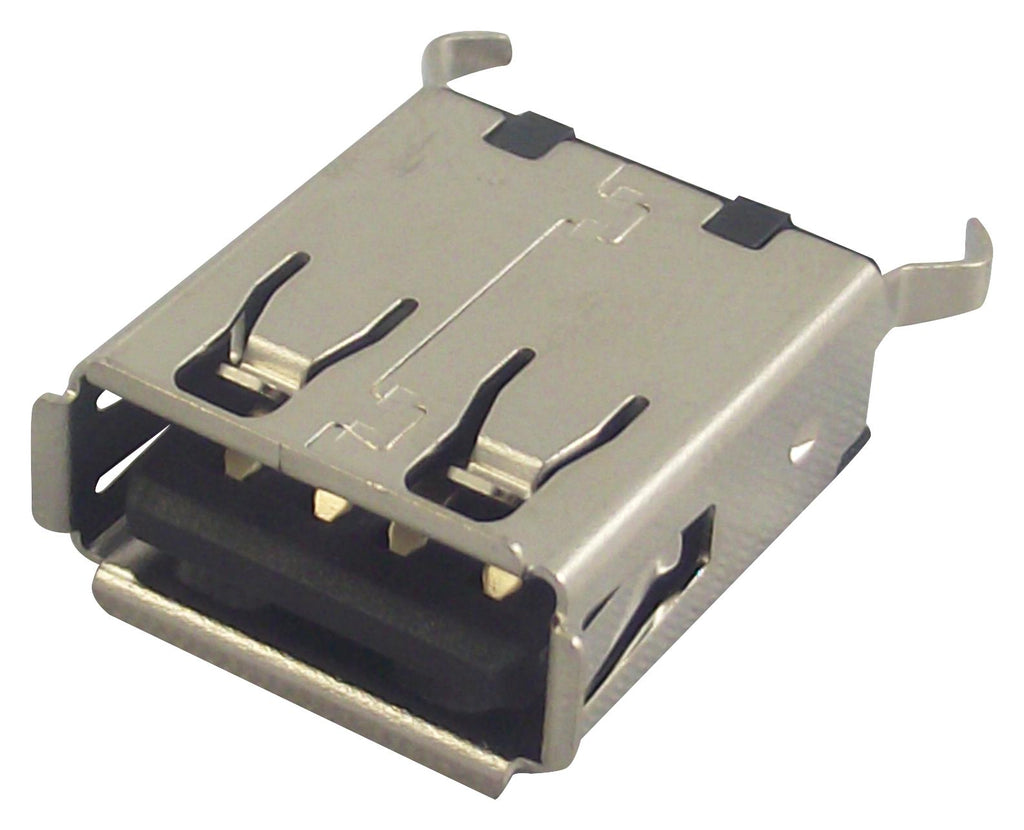

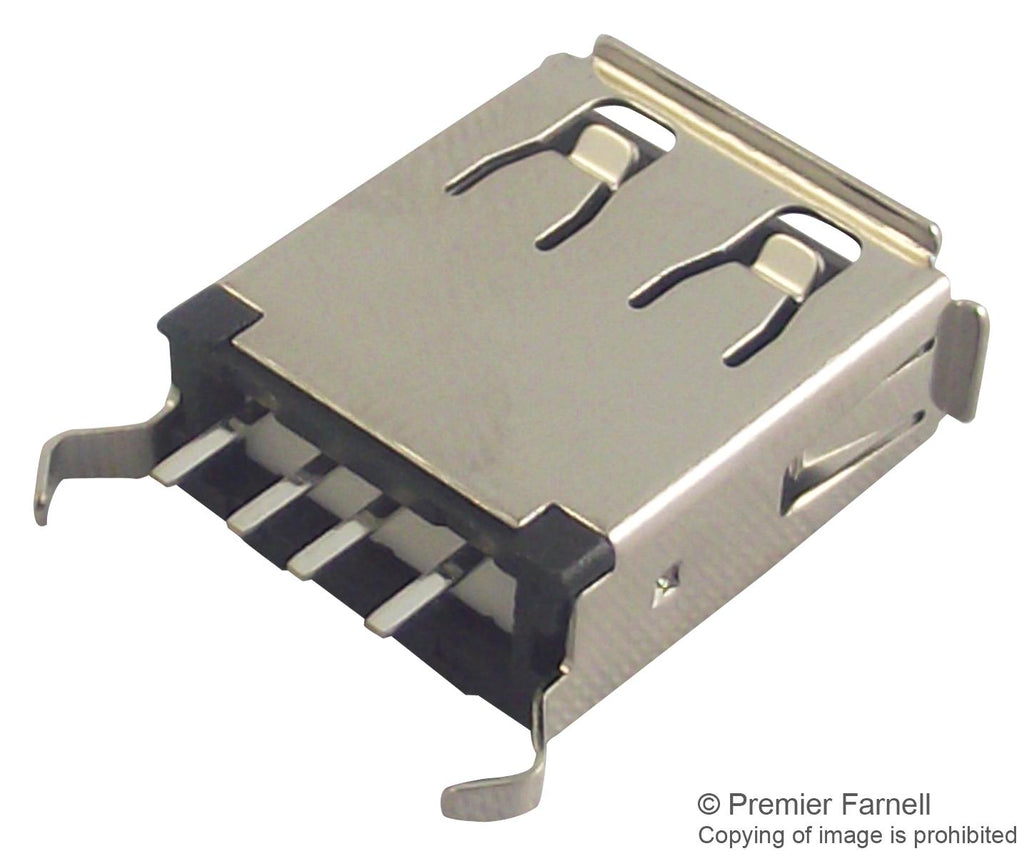

The USB-A-S-VT is a single port and vertical PCB USB type-A Receptacle with glass-filled PBT insulator, brass contacts and nickel-plated brass shell.
- USB 2.0 type A receptacle
- 1.5A at 250VAC Maximum Current Rating
- 30VAC Voltage Rating
- 30mΩ Maximum Contact Resistance
- 1000MΩ Minimum Insulation Resistance
- Black colour PBT glass filled insulator
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Product details
| USB Connector Type |
USB Type A |
| Gender |
Receptacle |
| Connector Mounting |
Through Hole Mount |
| Contact Material |
Brass |
| Product Range |
- |
| USB Standard |
USB 2.0 |
| No. of Positions |
4Ways |
| Orientation |
Vertical |
| Contact Plating |
Gold Plated Contacts |
| SVHC |
No SVHC (21-Jan-2025) |
