Product Overview

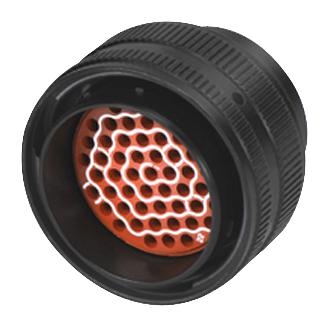

CINCH CONNECTIVITY SOLUTIONS CN1020A22G19P8-240 Circular Connector, CN Series, MIL-DTL-26500 Series, Straight Plug, 19 Contacts, Crimp Pin, Bayonet
Product details
| Product Range |
CN Series |
| Circular Connector Shell Style |
Straight Plug |
| Circular Connector Contact Type |
Crimp Pin |

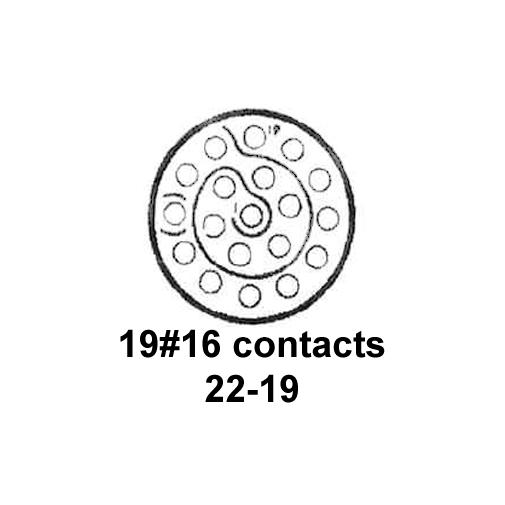

| Insert Arrangement |
22-19 |
| Connector Body Plating |
Olive Drab Chromate over Cadmium |
| Contact Plating |
Gold |
| Service Class |
Environmentally Sealed, Vibration-proof |
| Equivalent Military Specification |
MIL-DTL-26500 Series |
| No. of Contacts |
19Contacts |
| Coupling Style |
Bayonet |
| Connector Body Material |
Aluminium Alloy Body |
| Contact Material |
Copper Alloy |
| Insert Rotation |
8 |
| SVHC |
Lead (10-Jun-2022) |
Other details
| Brand |
CINCH CONNECTIVITY SOLUTIONS |
| Part Number |
CN1020A22G19P8-240 |
| Quantity |
Each |
| Technical Data Sheet (638.34KB) EN |
View or download |
