Description
Product Overview
The LM317MABDTG is an adjustable 3-terminal Positive Voltage Regulator capable of supplying in excess of 500mA over an output voltage range of 1.2 to 37V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting and thermal shutdown and safe area compensation, making it essentially blow-out proof. The device serves a wide variety of applications including local, on-card regulation. This device also makes an especially simple adjustable switching regulator, a programmable output regulator or by connecting a fixed resistor between the adjustment and output, the device can be used as a precision current regulator.
- Eliminates stocking many fixed voltages
- Floating operation for high voltage
- 2% Output voltage tolerance
Applications
Automotive, Power Management, Industrial
Product details
| Output Type | Adjustable |
| Output Voltage - Nom | - |
| Output Voltage Max | 37V |
| Input Voltage Max | 40V |
| Max Output Current | 500mA |

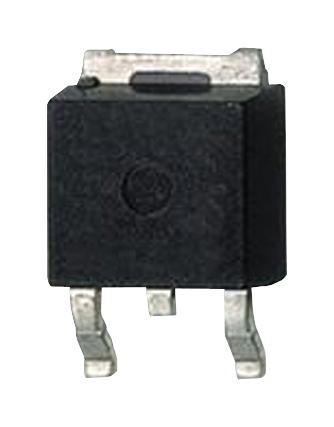

| IC Case / Package | TO-252 (DPAK) |
| IC Mounting | Surface Mount |
| Operating Temperature Max | 125°C |
| MSL | MSL 1 - Unlimited |
| No. of Outputs | 1Outputs |
| Output Voltage Min | 1.2V |
| Input Voltage Min | 3V |
| Product Range | - |
| Output Current Max | 500mA |
| No. of Pins | 3Pins |
| Operating Temperature Min | -40°C |
| Qualification | - |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | ONSEMI |
| Part Number | LM317MABDTG |
| Quantity | Each |
| Technical Data Sheet (138.22KB) EN | View or download |
| Product Change Notice (530.30KB) EN | View or download |
