Description
Product Overview

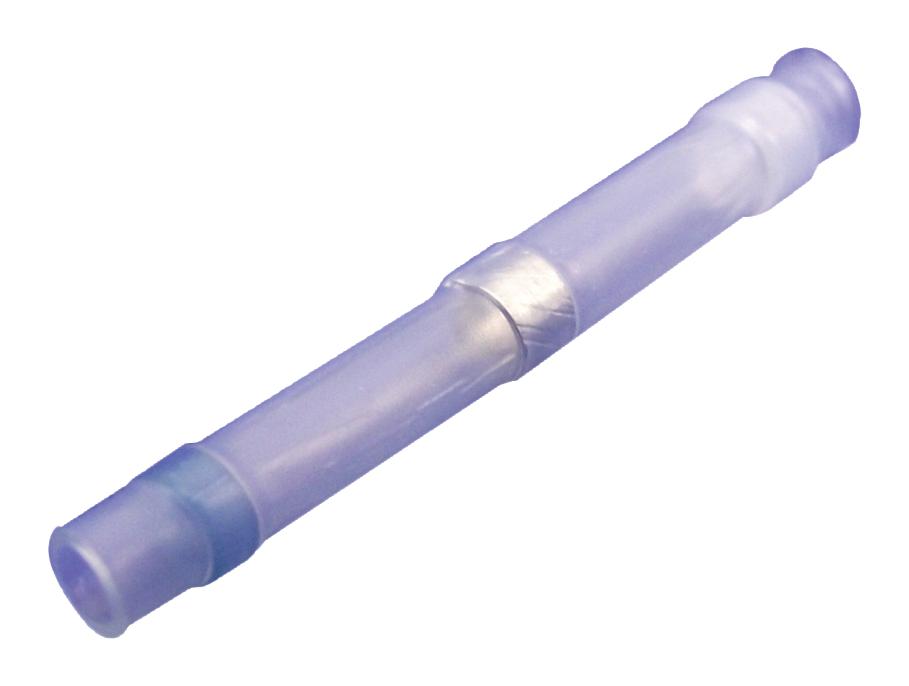

The CWT-3801 is a SolderSleeve® one-step Shield Terminator with radiation-cross-linked, transparent heat-shrinkable polyolefin insulation. This CWT-series terminator provide a fast, reliable, economical and convenient method for splicing wires with a low temperature rating. A precisely engineered, fluxed solder perform, within the heat-shrinkable sleeve provides a completely soldered, strain-relieved, encapsulated termination. Low temperature wires can be terminated in applications with maximum operating temperatures up to 125°C. Transparent sleeving allows inspection of the finished product. Compatible with a range of dielectric materials and wire insulations, including sensitive low temperature materials. Ideal for outdoor electrical use.
- Covers wire size from 12 to 26AWG
- One-piece design simplifies installation
Applications
Industrial, Motor Drive & Control
Product details
| Connector Type | Terminator |
| Insulator Colour | Transparent |
| Insulator Length | 26mm |
| Product Range | CWT Series |
| Internal Diameter | 1.7mm |
| Insulator Material | PO (Polyolefin) |
| Wire Gauge | - |
| SVHC | Cadmium (04-Feb-2026) |
Other details
| Brand | TE CONNECTIVITY - RAYCHEM |
| Part Number | CWT-3801 |
| Quantity | Each |
| Drawing (98.45KB) EN | View or download |
| Technical Data Sheet (101.65KB) EN | View or download |
| Product Change Notice (193.24KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
