Description
Product Overview
The STN3N45K3 is a 450V N-channel Zener-protected SuperMESH™ Power MOSFET with a new optimized vertical structure. The MOSFET boasts an extremely low on resistance, superior dynamic performance and high avalanche capability, rendering it suitable for the most demanding applications. Improved gate charge and lower power dissipation to meet today's challenging efficiency requirements.
- Extremely high dv/dt capability
- 100% Avalanche tested
- Gate charge minimized
- Very low intrinsic capacitance
- Improved diode reverse recovery characteristics
- Zener-protected
Applications
Industrial
Product details
| Channel Type | N Channel |
| Continuous Drain Current Id | 600mA |

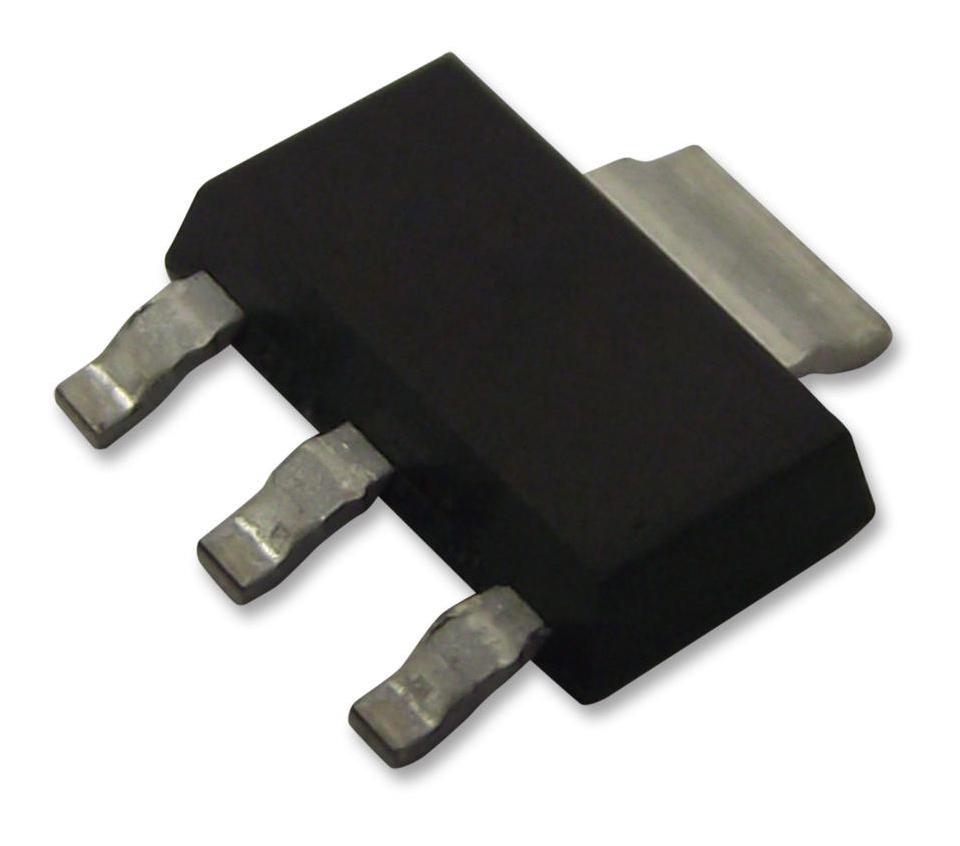

| Transistor Case Style | SOT-223 |
| Rds(on) Test Voltage | 10V |
| Power Dissipation | 2W |
| Operating Temperature Max | 150°C |
| Qualification | - |
| SVHC | No SVHC (25-Jun-2025) |
| Drain Source Voltage Vds | 450V |
| Drain Source On State Resistance | 3.2ohm |
| Transistor Mounting | Surface Mount |
| Gate Source Threshold Voltage Max | 3.75V |
| No. of Pins | 4Pins |
| Product Range | - |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STN3N45K3 |
| Quantity | Each |
| Product Change Notice (573.88KB) EN | View or download |
| Technical Data Sheet (1009.51KB) EN | View or download |
