Description
Product Overview

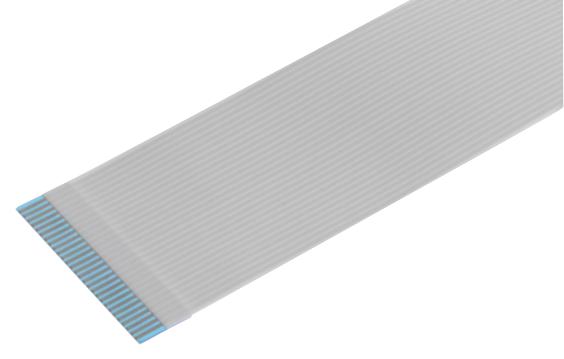

The 15015-0433 is a 0.102m 33-way Premo-Flex™ etched copper polyimide cable jumper, 15015 series, FFC type A to FFC type A connectors, 0.30mm pitch and 0.12mm cable thickness. Etched-copper polyimide circuitry achieving tight tolerances required for reliable connections with microminiature FPC connectors. Polyimide substrate made of high-temperature material. Rated up to +105°C meeting industry-standard requirements. Ensures simple ZIF assembly process ideal for microminiature electrical connections between PCB's and display boards. Premo-Flex FFC jumper in ultra-thin, ultra-flexible 0.12mm cable have an extended flex life of 2 million cycles vs. standard jumper flex life of 10,000 cycles. Premo-Flex polyimide jumpers with etched-copper circuitry achieve the tight-tolerances required for reliable connections to fine pitch, 0.30mm microminiature connectors, that standard copper wire FFC jumpers cannot.
- Rugged and reliable
- Durable and extra flexible PCB-connection solution
- Mirrors signal layout between PCBs
- Simple assembly process
- Etched polyimide jumper - standard product
- Achieves tight tolerances required for reliable connections
- Polyimide substrate insulation
- Withstands high-temperature insulation material
- Round flat cable design
- Delivers superior signal integrity and high resistance to vibration and bending
- Ideal for rugged applications with space limitations
Applications
Automotive, Commercial Vehicle, Consumer Electronics, Aerospace, Defence, Military, Industrial, Medical
Product details
| No. of Cores | 33Core |
| Contact Orientation | Same Sided Contacts |
| Cable Length - Metric | 102mm |
| Product Range | Premo-Flex 15015 Series |
| Pitch Spacing | 0.3mm |
| Cable Length - Imperial | 4" |
| Jacket Colour | Brown, Orange |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | MOLEX |
| Part Number | 15015-0433 |
| Quantity | Each |
| Drawing (101.87KB) EN | View or download |
| Technical Data Sheet (29.14KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 510.56 |
| 3-5 | ₹ 505.35 |
| 5-10 | ₹ 494.93 |
| 10+ | ₹ 484.51 |
Bulk discount will be automatically applied during checkout based on quantity.
