Description
Product Overview

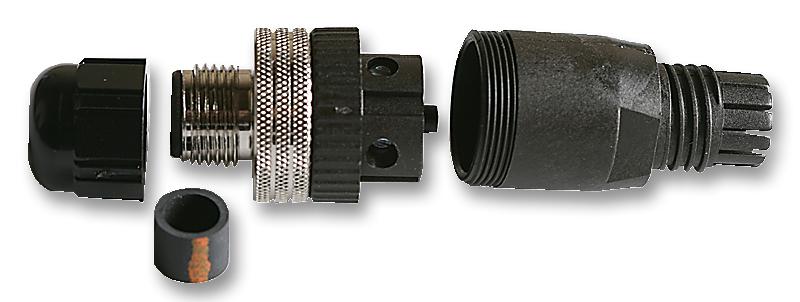

The 130017-0026 is a 5-pole Mini-Change® male Field Attachable Connector with gold-plated copper contacts. The Mini-Change® connector is the standard by which all miniature connector is measured. This connector provides the first quick-connect alternative to hard-wiring.
- Nylon connector body
- Nickel-plated brass coupling nut
- Internal thread coupling
- 8A Maximum current per contact
- 600VAC/DC Maximum voltage
- IP67 Protection
Applications
Sensing & Instrumentation, Maintenance & Repair
Product details
| Product Range | Mini-Change 130017 Series |
| Sensor Connector Gender | Male |
| Sensor Contact Type | Screw Pin |
| IP / NEMA Rating | IP67 |
| Connector Body Material | Nylon (Polyamide) Body |
| Contact Plating | Gold |
| Voltage Rating | 600V |
| Sensor Connector Size | 7/8" |
| No. of Positions | 5 Positions |
| Sensor Connector Mounting | Straight Cable Mount |
| Connector Coding | - |
| Contact Material | Copper Alloy |
| Current Rating | 8A |
| SVHC | Lead (14-Jun-2023) |
Other details
| Brand | MOLEX |
| Part Number | 130017-0026 |
| Quantity | Each |
| Technical Data Sheet (23.17KB) EN | View or download |
