Description
Product Overview
The Z0103MN0 is a very sensitive gate TRIAC intended for use in applications requiring enhanced noise immunity, direct interfacing to logic ICs and low power gate drivers.
- Direct interfacing to logic level ICs
- Enhanced current surge capability
- Enhanced noise immunity
- High blocking voltage capability
- Planar passivated for voltage ruggedness and reliability
- Triggering in all four quadrants
Applications
Industrial, Motor Drive & Control, HVAC, Automation & Process Control, Consumer Electronics, Power Management
Product details
| Peak Repetitive Off State Voltage | 600V |

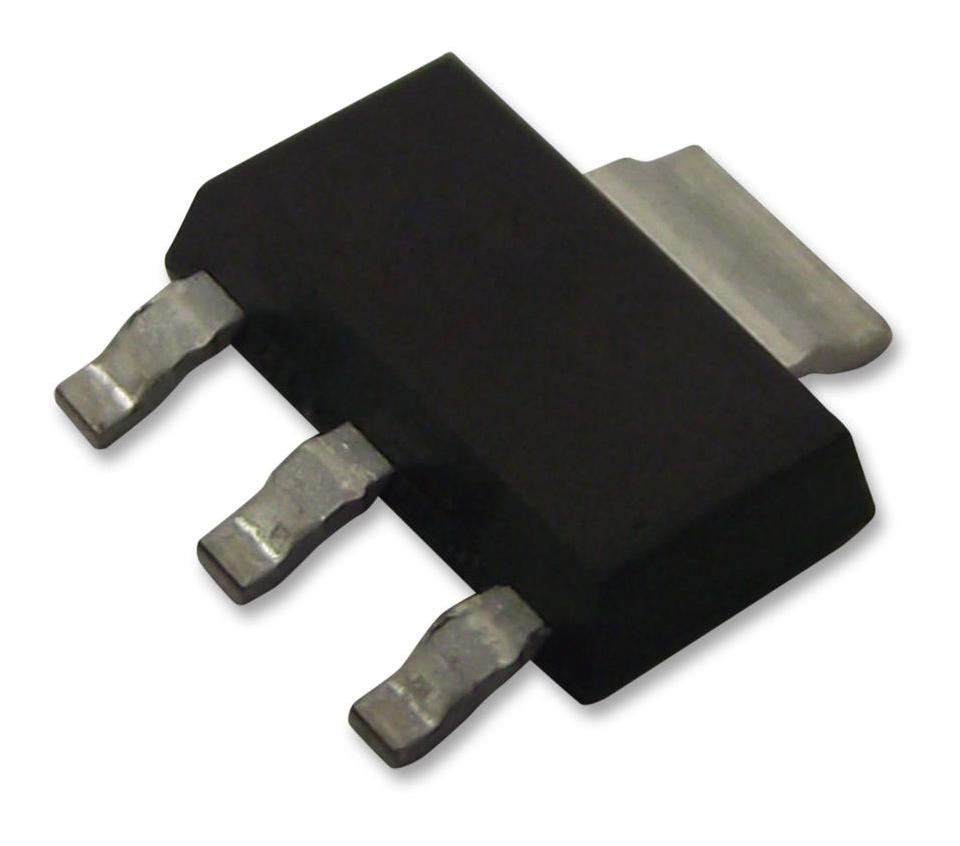

| Triac Case Style | SOT-223 |
| Peak Non Repetitive Surge Current | 13.8A |
| No. of Pins | 4Pins |
| Peak On State Voltage | 1.6V |
| Product Range | - |
| SVHC | No SVHC (23-Jan-2024) |
| On State RMS Current | 1A |
| Gate Trigger Voltage Max | 1V |
| Holding Current Max | 7mA |
| Operating Temperature Max | 125°C |
| Thyristor Mounting | Surface Mount |
| MSL | - |
Other details
| Brand | WEEN SEMICONDUCTORS |
| Part Number | Z0103MN0,135 |
| Quantity | Each |
| Technical Data Sheet (792.34KB) EN | View or download |
| Application Note (107.95KB) EN | View or download |
