Description
Product Overview

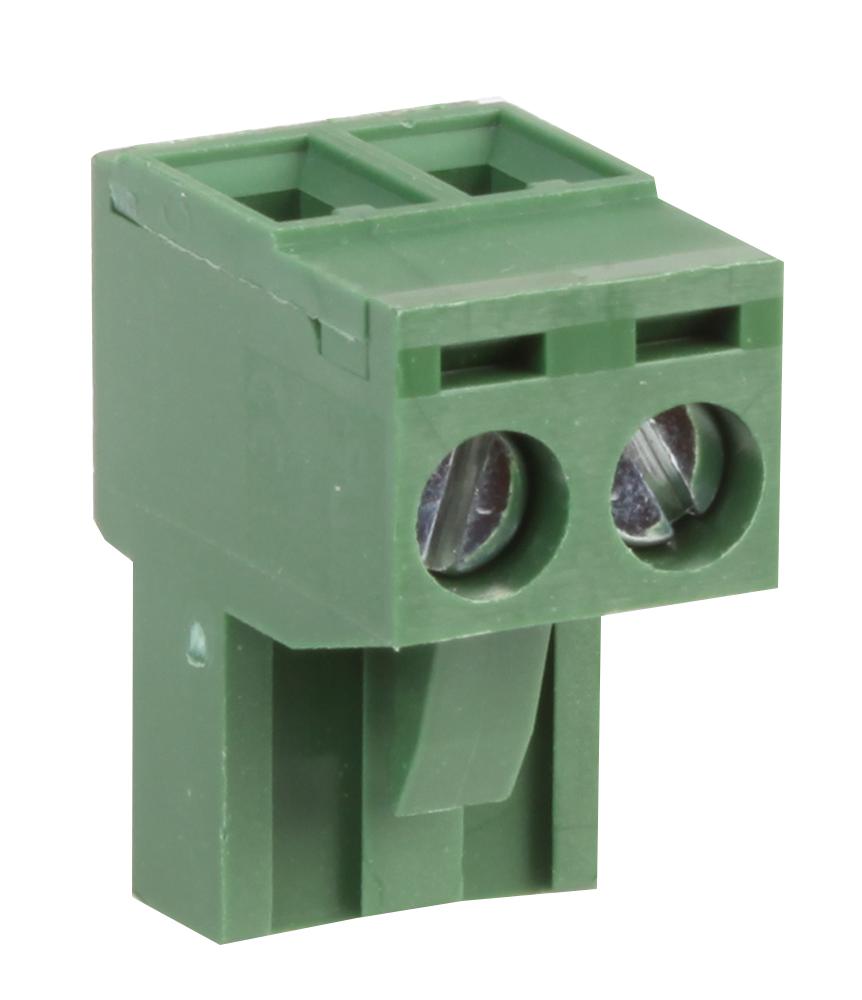

The MC000136 is a 2-way 5mm pluggable PCB Terminal Block with tin plated phosphor bronze terminal, green polyamide 66 insulating body and straight block orientation. It accepts 12AWG wire gauge.
- <gt/>2000MΩ Insulation resistance
- -40 to +105°C Operating temperature range
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial
Product details
| Pitch Spacing | 5mm |
| Wire Size (AWG) | 24AWG to 12AWG |
| Wire Size AWG Max | 12AWG |
| Wire Connection Method | Screw |
| Rated Voltage | 300V |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Positions | 2Ways |
| Wire Size AWG Min | 24AWG |
| Conductor Area CSA | - |
| Rated Current | 16A |
| Product Range | - |
Other details
| Brand | MULTICOMP PRO |
| Part Number | MC000136 |
| Quantity | Each |
| Technical Data Sheet (462.46KB) EN | View or download |
