Description
Product Overview

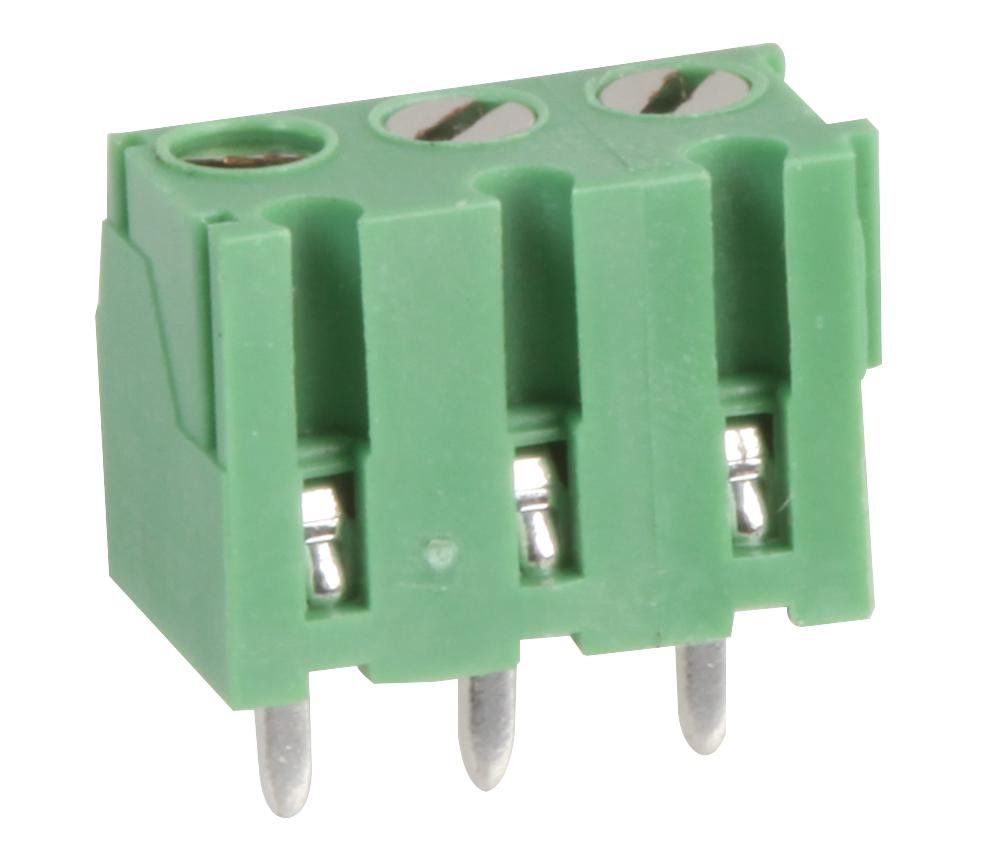

The MC000045 is a 3-way 3.81mm modular PCB Terminal Block with tin plated brass terminals, green polyamide 66 insulating body and through hole right angle block orientation. This PCB terminal block accepts 16AWG wire gauge, it has wire to board screw connection. Modular terminal block, allowing combination with other modular or single type Multicomp Pro terminal blocks.
- <gt/>2000MΩ Insulation resistance
- -40 to +105°C Operating temperature range
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial
Product details
| Pitch Spacing | 3.81mm |
| Wire Size AWG Min | 26AWG |
| Conductor Area CSA | - |
| Rated Current | 8A |
| Block Orientation | Through Hole Right Angle |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Positions | 3Ways |
| Wire Size AWG Max | 16AWG |
| Wire Connection Method | Screw |
| Rated Voltage | 300V |
| Product Range | MC00004 |
Other details
| Brand | MULTICOMP PRO |
| Part Number | MC000045 |
| Quantity | Each |
| Technical Data Sheet (282.27KB) EN | View or download |
