Product Overview

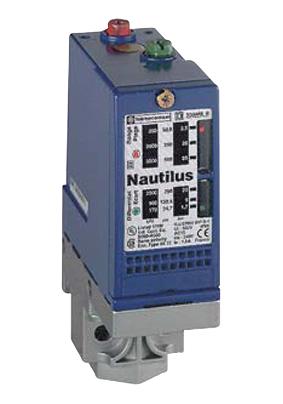

TELEMECANIQUE SENSORS XMLB070D2S11 Pressure Switch, Differential, G 1/4" BSP, 7 bar, 70 bar, SPDT, 120 VAC
Product details
| Pressure Type |
Differential |
| Pressure Port Type |
G 1/4" BSP |
| Operating Pressure Max |
70bar |
| Contact Configuration |
SPDT |
| Electrical Connection |
Screw Clamp Terminals |
| Switching Current Max |
100mA |
| Switching Current DC Resistive |
100mA |
| Deadband Min |
- |
| Operating Temperature Min |
-25°C |
| Product Range |
OsiSense XMLB Series |
| Pressure Fitting Style |
G 1/4" BSP |
| Operating Pressure Min |
7bar |
| Sensor Mounting |
Panel / Chassis |
| Switching Voltage Max |
120VAC |
| Switching Voltage DC Resistive |
250V |
| Pressure Port Size |
G1/4 |
| Transducer Connection / Termination |
Screw-Clamp |
| Deadband Max |
- |
| Operating Temperature Max |
70°C |
| SVHC |
No SVHC (17-Dec-2014) |
