Product Overview

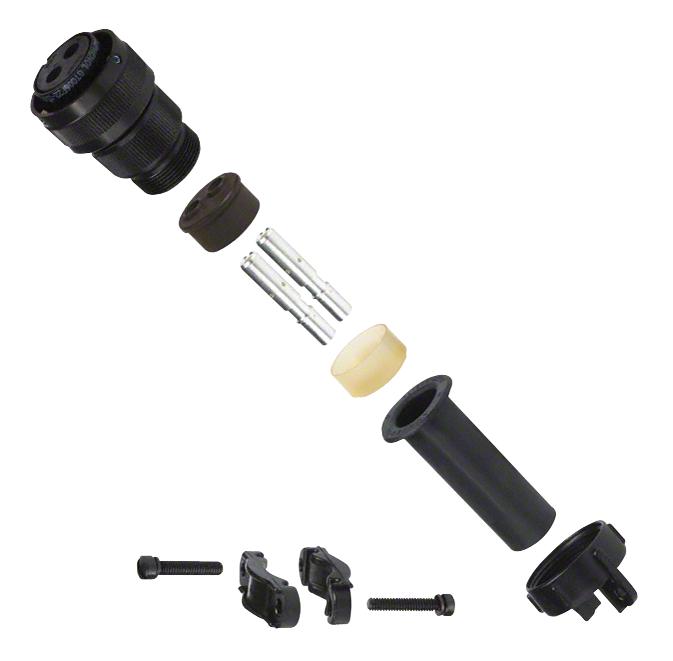

AMPHENOL INDUSTRIAL GTC06R14S-6SW Circular Connector, GTC Series, MIL-DTL-5015 Series, Straight Plug, 6 Contacts, Crimp Socket
Product details
| Product Range |
GTC Series |
| Circular Connector Shell Style |
Straight Plug |
| Circular Connector Contact Type |
Crimp Socket |
| Insert Arrangement |
14S-6 |
| Connector Body Plating |
Olive Drab Chromate over Cadmium |
| Contact Plating |
Silver |
| Service Class |
General Duty |
| Equivalent Military Specification |
MIL-DTL-5015 Series |
| No. of Contacts |
6Contacts |
| Coupling Style |
Reverse Bayonet |
| Connector Body Material |
Aluminium Alloy Body |
| Contact Material |
Copper Alloy |
| Insert Rotation |
W |
| SVHC |
No SVHC (17-Dec-2014) |
Other details
| Brand |
AMPHENOL INDUSTRIAL |
| Part Number |
GTC06R14S-6SW |
| Quantity |
Each |
| Technical Data Sheet (3.12MB) EN |
View or download |
