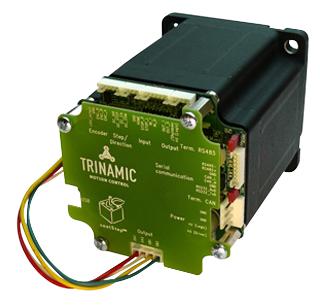

Product Overview
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Stepper Motor Type |
Single Shaft |
| Coil Type |
DC |
| Torque Max |
7N-m |
| Voltage Rating Max |
48VDC |
| External Length |
118mm |
| Product Range |
PANdrive |
| SVHC |
No SVHC (16-Jul-2019) |
| Motor Size |
86mm |
| Step Angle |
1.8° |
| Current Rating |
5.5A |
| No. of Wires |
4 |
| Shaft Diameter |
12.7mm |
| Shaft Length |
31.75mm |
Other details
| Brand |
TRINAMIC / ANALOG DEVICES |
| Part Number |
PD86-3-1180-TMCL |
| Quantity |
Each |
| Technical Data Sheet (776.30KB) EN |
View or download |
| Programming Manual (1.24MB) EN |
View or download |
