Description
Product Overview

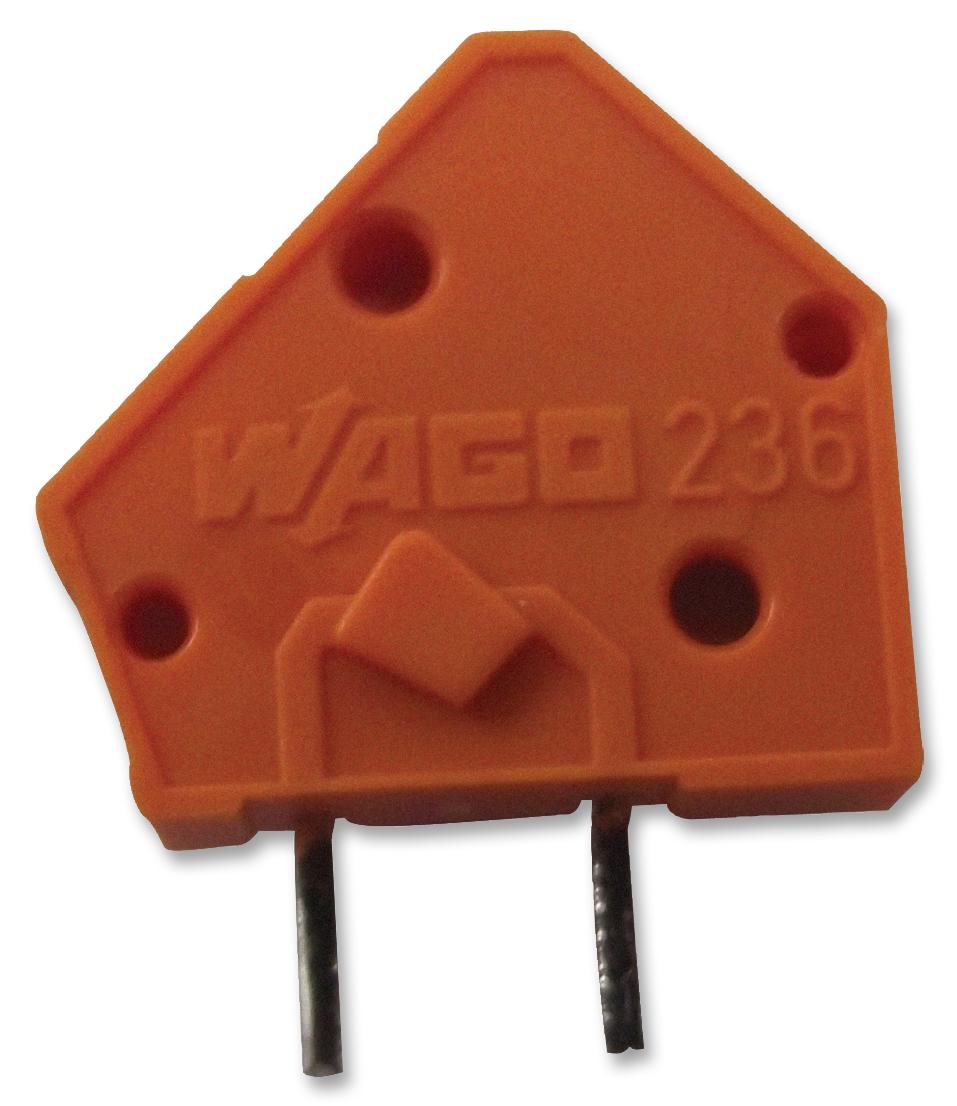

The 236-746 is a 1-pole 24A wire-to-board Terminal Block with through-hole 45° block orientation and CAGE CLAMP® wire connection technology. It has tin-plated electrolytic copper contact with polyamide 66 insulation and a chrome-nickel-plated steel clamping spring.
Applications
Industrial
Product details
| Pitch Spacing | 5.08mm |
| Wire Size AWG Min | 28AWG |
| Conductor Area CSA | 2.5mm² |
| Rated Current | 24A |
| Block Orientation | Through Hole 45° |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Positions | 1Ways |
| Wire Size AWG Max | 12AWG |
| Wire Connection Method | Clamp |
| Rated Voltage | 320V |
| Product Range | - |
Other details
| Brand | WAGO |
| Part Number | 236-746. |
| Quantity | Each |
| Drawing (1.13MB) EN | View or download |
| Technical Data Sheet (358.89KB) EN | View or download |
