Description
Product Overview

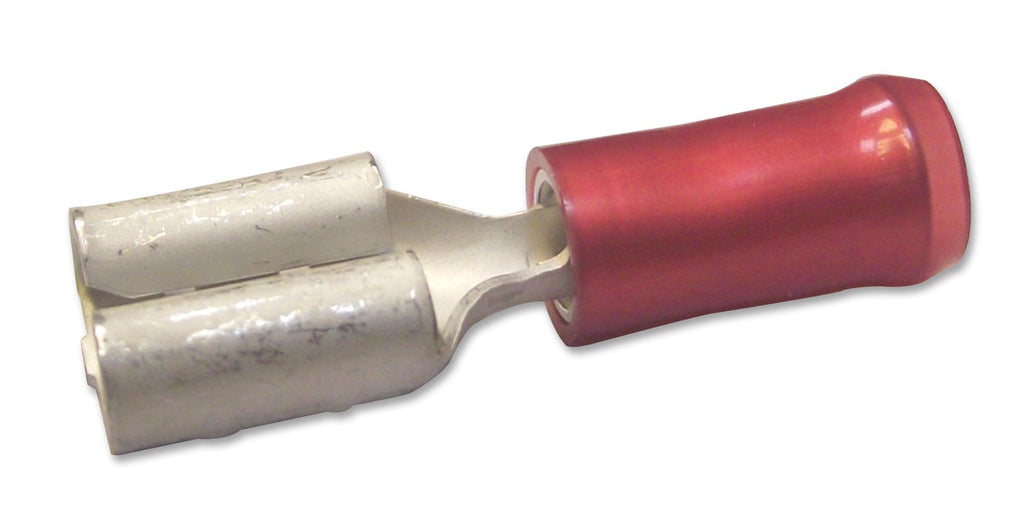

The 9-160583-2 is a Socket Terminal with red nylon (polyamide) insulator, tin-plated brass contact. 1 to 2.5mm² wire cross-section, straight orientation, quick disconnect type, 6.35 x 0.81mm tab size and 22 to 15AWG wire size. This crimp terminal is suitable for wires/cables.
- 300V Maximum voltage rating
- Dimple mating retention
- Insulation support style
- Single connection capacity
Applications
Industrial
Product details
| Product Range | FASTON 250 |
| Tab Size - Metric | 6.35mm x 0.81mm |
| Wire Size AWG Min | 22AWG |
| Insulator Colour | Red |
| Insulator Material | Nylon (Polyamide) |
| SVHC | No SVHC (04-Feb-2026) |
| Terminal Type | Female Quick Disconnect |
| Tab Size - Imperial | 0.25" x 0.032" |
| Wire Size AWG Max | 15AWG |
| Conductor Area CSA | 1.5mm² |
| Terminal Material | Brass |
Other details
| Brand | TE CONNECTIVITY - AMP |
| Part Number | 9-160583-2 |
| Quantity | Each |
| 3D Product Image (379.16KB) EN | View or download |
| Drawing (50.54KB) EN | View or download |
| Technical Data Sheet (54.00B) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
