Product Overview

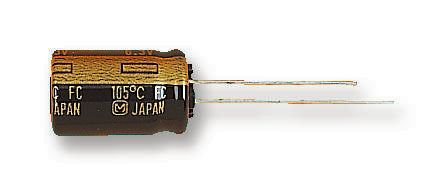

The Panasonic EEUFC series capacitors are automotive grade, radial polarized aluminium electrolytic capacitors. The capacitance value ranges from 1µF to 1500µF. These capacitors are solution for low impedance solutions.
- High reliability
- Automotive grade AEC-Q200 compliant
- Rated voltage range of 6.3VDC to 100VDC
- Tolerance of ±20%
- Endurance of 1000h to 5000h at 105°C
- Operating temperature range -55°C to 105°C
- Rated voltage range of 6.3VDC to 100VDC
Product details
| Capacitance |
220µF |
| Capacitance Tolerance |
± 20% |
| Lifetime @ Temperature |
2000 hours @ 105°C |
| Capacitor Case / Package |
Radial Leaded |
| Product Diameter |
8mm |
| Product Width |
- |
| Product Range |
FC Series |
| Ripple Current |
730mA |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Voltage(DC) |
35V |
| Capacitor Terminals |
Radial Leaded |
| Polarity |
Polar |
| Lead Spacing |
5mm |
| Product Length |
- |
| Product Height |
15mm |
| ESR |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
AEC-Q200 |
