Product Overview

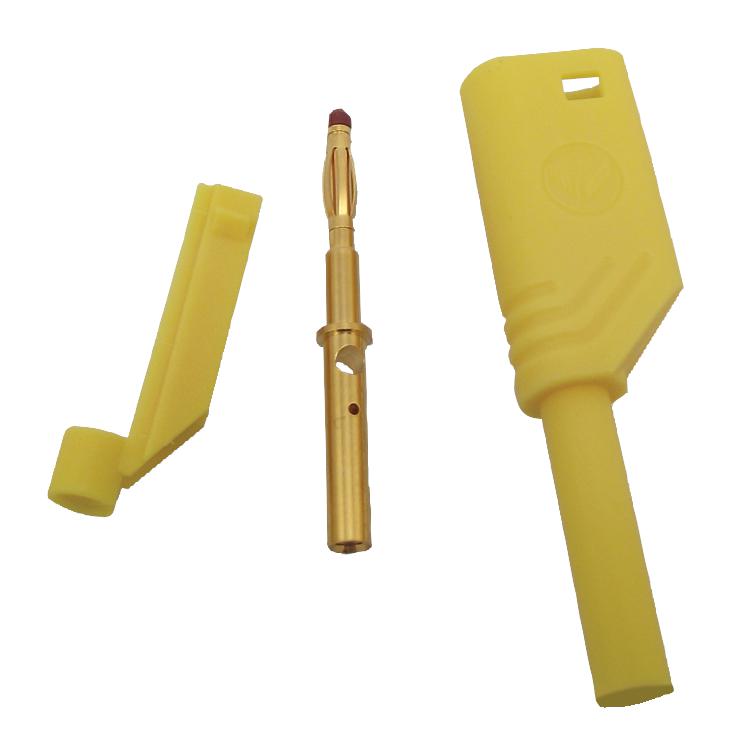

Safety stackable plug with solder connection for leads from 0.5 mm² to 1.0 mm². Outer diameter of lead max. 2.9 mm. Spring loaded plug and unsprung 2 mm socket for onward connection capability, 1000 V-system, IEC 61010. Simple assembly by "Click-System".
- 2 mm safety system
- Plugs
- AC/DC 1000 V rated voltage (1)
- CAT III measurement cat. acc. to IEC 61010
- 10 A rated current (1)
- PA housing material
- (1) for normal environmental conditions -5°C to +40°C
Product details
| Gender |
Plug |
| Current Rating |
10A |
| Contact Plating |
Gold Plated Contacts |
| Contact Material |
Beryllium Copper |
| Product Range |
MST S WS 30 AU Series |
| Connector Mounting |
Cable Mount |
| Voltage Rating |
1kV |
| Connector Colour |
Yellow |
| Contact Termination Type |
Solder |
| SVHC |
Lead (25-Jun-2020) |
Other details
| Brand |
HIRSCHMANN TEST AND MEASUREMENT |
| Part Number |
975090703 |
| Quantity |
Each |
| Declaration of Conformity (1.61MB) EN |
View or download |
| Technical Data Sheet (275.39KB) EN |
View or download |
