Product Overview

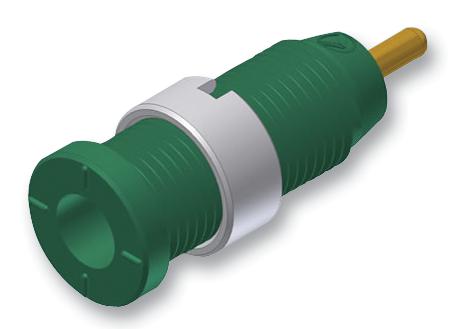

Miniature - safety built-in socket, 2 mm diameter, touch protected, 1,9mm soldering spike connection, gold-plated brass. For installation into switch- panels and equipment chassis with a wall thickness up to 8mm. Installation hole: 8mm diameter
- 2 mm safety system
- Sockets
- AC/DC 1000 V rated voltage (1)
- CAT III measurement cat. acc. to IEC 61010
- 10 A rated current (1)
- PA housing material
- (1) for normal environmental conditions -5°C to +40°C
Product details
| Gender |
Receptacle |
| Current Rating |
10A |
| Contact Plating |
Gold Plated Contacts |
| Contact Material |
Brass |
| Product Range |
MSEB 2630 S 1,9 Au Series |
| Connector Mounting |
Panel Mount |
| Voltage Rating |
1kV |
| Connector Colour |
Green |
| Contact Termination Type |
Quick Connect |
| SVHC |
Lead (25-Jun-2020) |
Other details
| Brand |
HIRSCHMANN TEST AND MEASUREMENT |
| Part Number |
975459704 |
| Quantity |
Each |
| Technical Data Sheet (296.51KB) EN |
View or download |
| Declaration of Conformity (1.61MB) EN |
View or download |
