Description
Product Overview

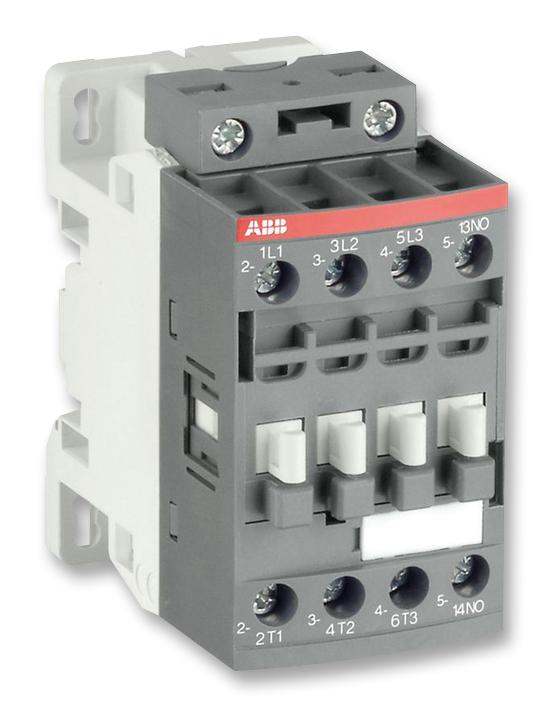

Featuring AF technology as standard, AF contactors establish a new industry benchmark. The electronically controlled coil offers multiple benefits over conventional alternatives, and together with ABB's wide product offering, an optimal configuration, every time,
- Optimize logistics and cut administration costs with fewer product variants to handle
- ccess global support and use the same products in all parts of the world: the 100 - 250 V, AC/DC coil covers all standard network voltages
- A reduction of the coil's energy consumption by 80% lets you save energy
- Secure your uptime by letting the AF technology overbridge voltage drops and sags.
- Built-in surge suppression
- Connection sets and interlock unit for reversing and star-delta starter for an easy, fast and secure assembly of starters
- Mirror and mechanically linked contacts
Applications
Automation & Process Control
Product details
| Load Current Inductive | 26A |
| Operating Voltage | 130V |
| No. of Poles | 3 Pole |
| Switching Current AC1 | 45A |
| Coil Voltage VDC Nom | 130V |
| Load Current Resistive | 45A |
| Product Range | AF Series |
| Relay Mounting | DIN Rail |
| Contact Configuration | 3PST-NO |
| Switching Power AC3 | 11kW |
| Coil Voltage VAC Nom | 130V |
| Switching Power AC1 | 11kW |
| Switching Current AC3 | 26A |
Other details
| Brand | ABB |
| Part Number | 1SBL237001R1200 |
| Quantity | Each |
| Technical Data Sheet (50.83KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
