Description
Product Overview

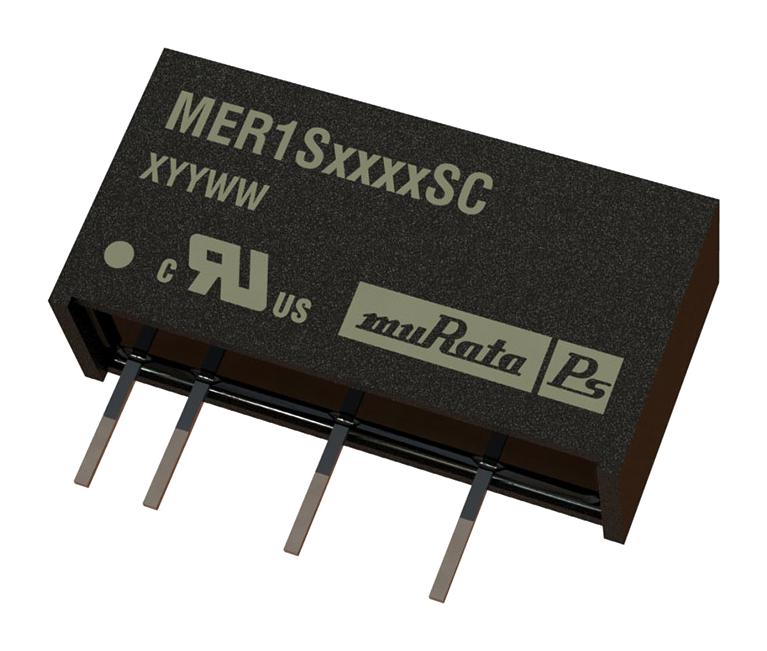

The MER1S2412SC is an isolated single-output DC/DC Converter offers improved regulation performance for applications where a wide output voltage variation cannot be tolerated. It is ideally suited for providing local supplies on control system boards with the added benefit of 1kVDC galvanic isolation to reduce switching noise. This device features high performance and more efficient.
- No heat-sink required
- Industry standard pin-out
- Fully encapsulated with toroidal magnetics
- No external components required
- No electrolytic or tantalum capacitors
- 2.4% Maximum load regulation
- 20mVp-p Maximum ripple and noise
- 87.5% Typical efficiency
- 91pF Isolation capacitance
- 1634μs Start-up time
Applications
Signal Processing, Industrial
Product details
| Power Supply Applications | ITE |
| Input Ratio | 1:1 |
| No. of Outputs | 1 Output |
| Output Current - Output 1 | 84mA |
| Output Current - Output 2 | - |
| Isolation Voltage | 1kV |
| DC / DC Converter Output Type | Fixed |
| Height | 10.15mm |
| Input Voltage DC Min | 21.6V |
| Product Range | MER Series |
| DC / DC Converter Type | SIP |
| Output Power Max | 1W |
| Output Voltage - Output 1 | 12V |
| Output Voltage - Output 2 | - |
| Output Regulation | Unregulated |
| Input Voltage DC Nom | 24V |
| Width | 6.25mm |
| Depth | 19.65mm |
| Input Voltage DC Max | 26.4V |
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | MER1S2412SC |
| Quantity | Each |
| Technical Data Sheet (70.00B) EN | View or download |
| 3D Product Image (138.34KB) EN | View or download |
| CAD Multiple Formats (4.05MB) EN | View or download |
| Product Change Notice (159.78KB) EN | View or download |
