Description
Product Overview

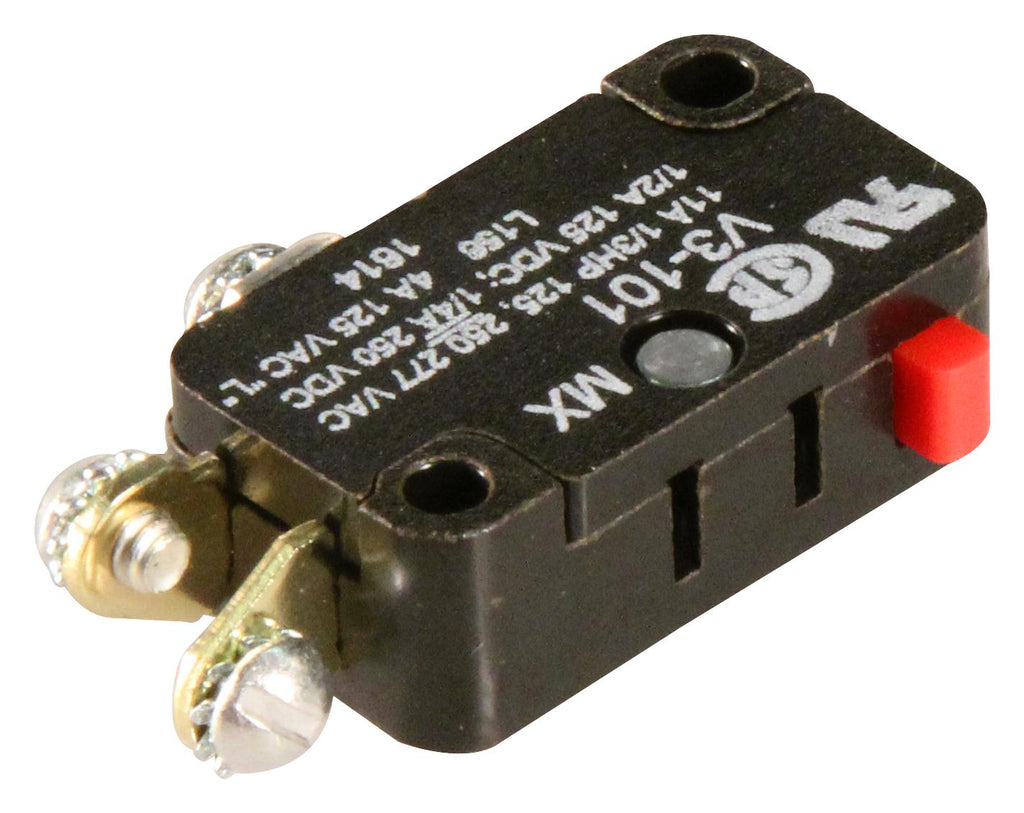

The V3-1 is a single-pole double-throw (SPDT) cut-a-way Miniature Basic Switch with a plunger actuator and screw terminations. This V3 series switch features high electrical capacity and long life. The size and shape of the switch meets design requirements in all types of applications. This switch is made up of sturdy aluminium rivet holds cover to case, water-resistant phenolic case and plunger, long life beryllium-copper spring.
- Sensitive differential as low as 0.006" maximum
- High temperature construction for use up to 316°C
Applications
Industrial
Product details
| Microswitch Type | Miniature |
| Contact Configuration | SPDT |
| Contact Current Max | 15.1A |
| Product Range | V3 Series |
| Operating Force Max | 14ozf |
| Microswitch Actuator | Plunger |
| Switch Terminals | Screw |
| Contact Voltage DC Nom | 250V |
| Contact Voltage AC Nom | 250V |
Other details
| Brand | HONEYWELL |
| Part Number | V3-1 |
| Quantity | Each |
| Technical Data Sheet (46.68KB) EN | View or download |
| Product Change Notice (901.23KB) EN | View or download |
