Description
Product Overview

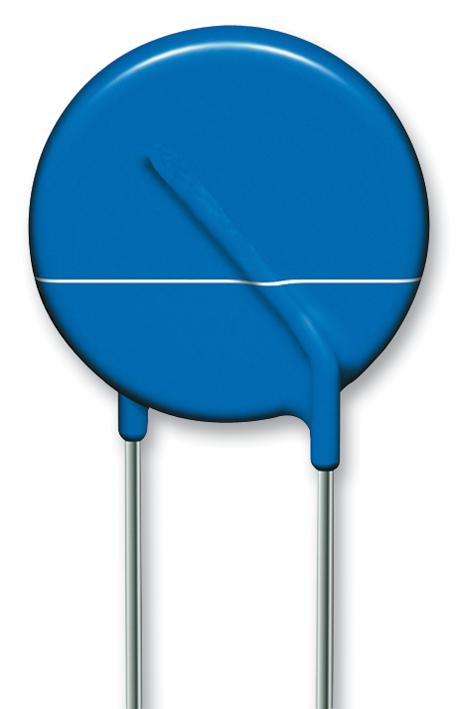

The SuperioR-MP series SIOV Leaded Metal Oxide Varistor with round shaped element and tinned copper wire terminals. It is encapsulated in an epoxy resin coated (flame-retardant to UL94V-0) package.
- Wide operating voltage range 130 to 680Vrms
- All types duty cycle @ 6kV/3kA ≥10 pulses, according to IEC 60950-1 annex Q, IEC 61051-2
- Multiple pulse handling capability
Applications
Industrial, Safety
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Voltage Rating VAC | 385V |
| Product Range | SuperioR-MP |
| Varistor Case Style | Disc 20mm |
| Peak Surge Current @ 8/20µs | 12kA |
| Operating Temperature Max | 85°C |
| Automotive Qualification Standard | - |
| Voltage Rating VDC | 505V |
| Clamping Voltage Vc Max | 1.025kV |
| Varistor Type | Metal Oxide Varistor (MOV) |
| Operating Temperature Min | -40°C |
| Peak Energy (10/1000uS) | 320J |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | TDK |
| Part Number | B72220P3381K101 |
| Quantity | Each |
| Product Change Notice (1.95MB) EN | View or download |
| Technical Data Sheet (80.00B) EN | View or download |
