Description
Product Overview

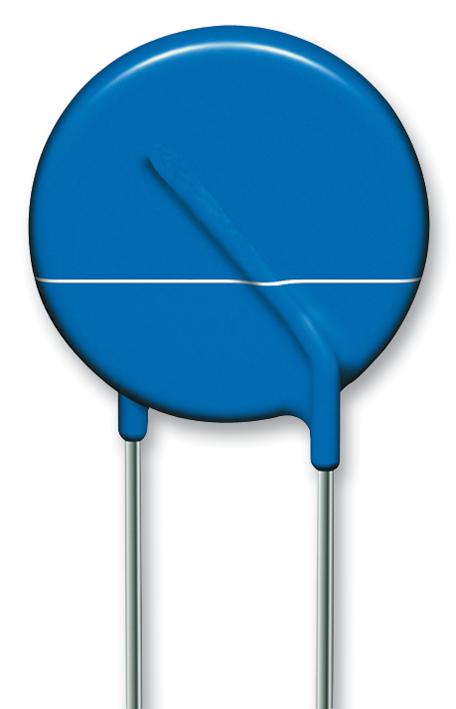

The AdvanceD-MP series SIOV Leaded Metal Oxide Varistor with round shaped element and tinned copper wire terminals. It is encapsulated in an epoxy resin coated (flame-retardant to UL94V-0) package.
- Wide operating voltage range 175 to 680Vrms
- All types duty cycle @ 6kV/3kA ≥10 pulses, according to IEC 60950-1 annex Q, IEC 61051-2
- Multiple pulse handling capability
- Listed under UL 1449 3rd Edition for type 3 applications
- Tested in accordance to IEC 61051-2
- VDE certified to Annex Q of IEC 60950-1
Applications
Industrial
Product details
| Voltage Rating VAC | 275V |
| Product Range | AdvanceD-MP |
| Varistor Case Style | Disc 10mm |
| Peak Surge Current @ 8/20µs | 3.5kA |
| Operating Temperature Max | 85°C |
| Automotive Qualification Standard | - |
| Voltage Rating VDC | 350V |
| Clamping Voltage Vc Max | 710V |
| Varistor Type | Metal Oxide Varistor (MOV) |
| Operating Temperature Min | -40°C |
| Peak Energy (10/1000uS) | 60J |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | TDK |
| Part Number | B72210P2271K101 |
| Quantity | Each |
| Product Change Notice (1.95MB) EN | View or download |
| Technical Data Sheet (474.39KB) EN | View or download |
