Description
Product Overview

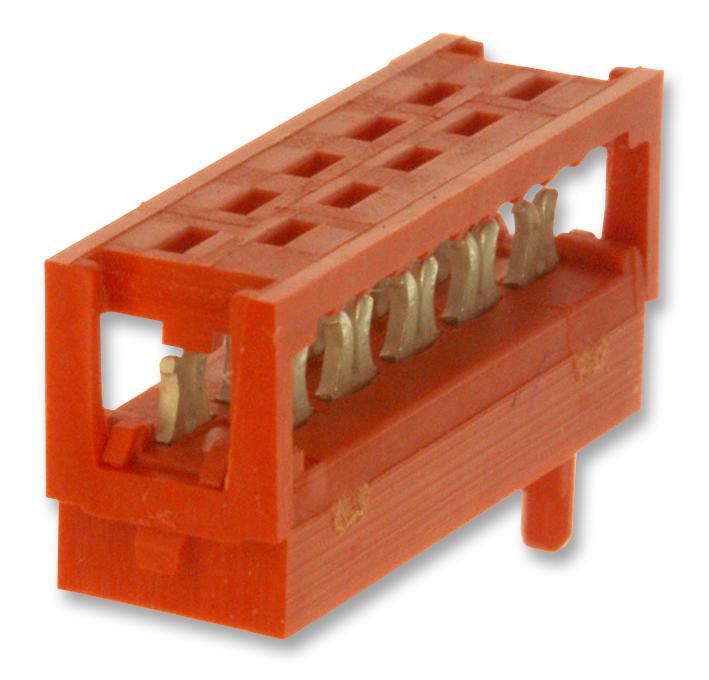

The 1-215083-0 is a 10-way 2-row Connector with tin-plated phosphor bronze contact. 1.27mm pitch spacing. This connector is suitable for use with ribbon cable. Accepts 0.1 to 0.9mm wire insulation diameter range.
- Red housing
- UL94V-0 Flammability rating
- 100VDC Operating voltage
- 1000MΩ Insulation resistance
- 1.5A Contact current rating
Applications
Industrial
Product details
| IDC Connector Type | IDC Plug |
| Pitch Spacing | 1.27mm |
| No. of Contacts | 10Contacts |
| Contact Material | Phosphor Bronze |
| Product Range | Micro-MaTch |
| Contact Gender | Male |
| No. of Rows | 2 Row |
| Connector Mounting | Cable Mount |
| Contact Plating | Tin Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | TE CONNECTIVITY - AMP |
| Part Number | 1-215083-0 |
| Quantity | Each |
| Technical Data Sheet (46.00B) EN | View or download |
| Technical Data Sheet (3.86MB) EN | View or download |
| Product Change Notice (215.37KB) EN | View or download |
| Manufacturer Catalogue (4.35MB) EN | View or download |
| Drawing (247.24KB) EN | View or download |
| 3D Product Image (163.07KB) EN | View or download |
| Application Note (60.06KB) EN | View or download |
