Description
Product Overview

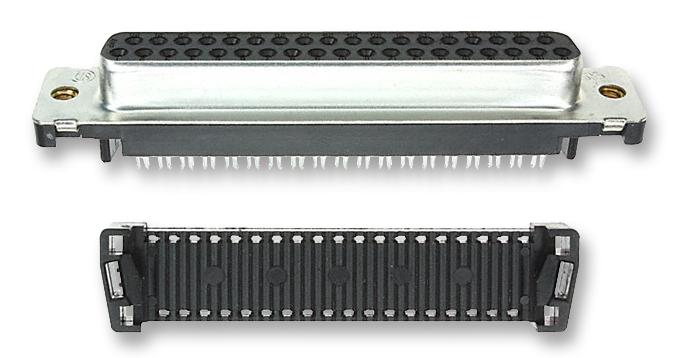

The 1658610-1 is a 37-way 2-row D-sub Receptacle for flat ribbon cable with gold-plated phosphor bronze contacts. The Amplimite HDF-20 series receptacle comes with black thermoplastic housing, bright tin-plated steel shell, 4-40 UNC brass threaded inserts and tin-plated solder tail. It accepts 28/26AWG solid and stranded round conductor flat ribbon cable on 0.050-inch centers.
- Visual inspection of termination possible
- Wide range of application tooling
- Patented insulation displacement contact latches into the connector cover
- Contact design provides a "gas-tight" termination
- Low profile
- UL94V-0 Flammability rating
Applications
Industrial, Computers & Computer Peripherals
Notes
All assemblies are supplied with housing and cover pre-assembled. Optional cable stabilizer must be ordered separately.
Product details
| D Sub Connector Type | Standard |
| Product Range | AMPLIMITE HDF |
| D Sub Shell Size | DC |
| Connector Mounting | Cable Mount, Panel Mount |
| Contact Plating | Gold Plated Contacts |
| SVHC | Lead (04-Feb-2026) |
| Gender | Receptacle |
| No. of Contacts | 37Contacts |
| Contact Termination Type | IDC / IDT |
| Contact Material | Phosphor Bronze |
| Connector Body Material | Steel Body |
Other details
| Brand | TE CONNECTIVITY - AMP |
| Part Number | 1658610-1 |
| Quantity | Each |
| One Page Summary (1.71MB) EN | View or download |
| Manufacturer Catalogue (2.94MB) EN | View or download |
| 3D Product Image (202.98KB) EN | View or download |
| Product Change Notice (354.80KB) EN | View or download |
| Drawing (141.73KB) EN | View or download |
| Reactivation Notices (188.94KB) EN | View or download |
