Description
Product Overview

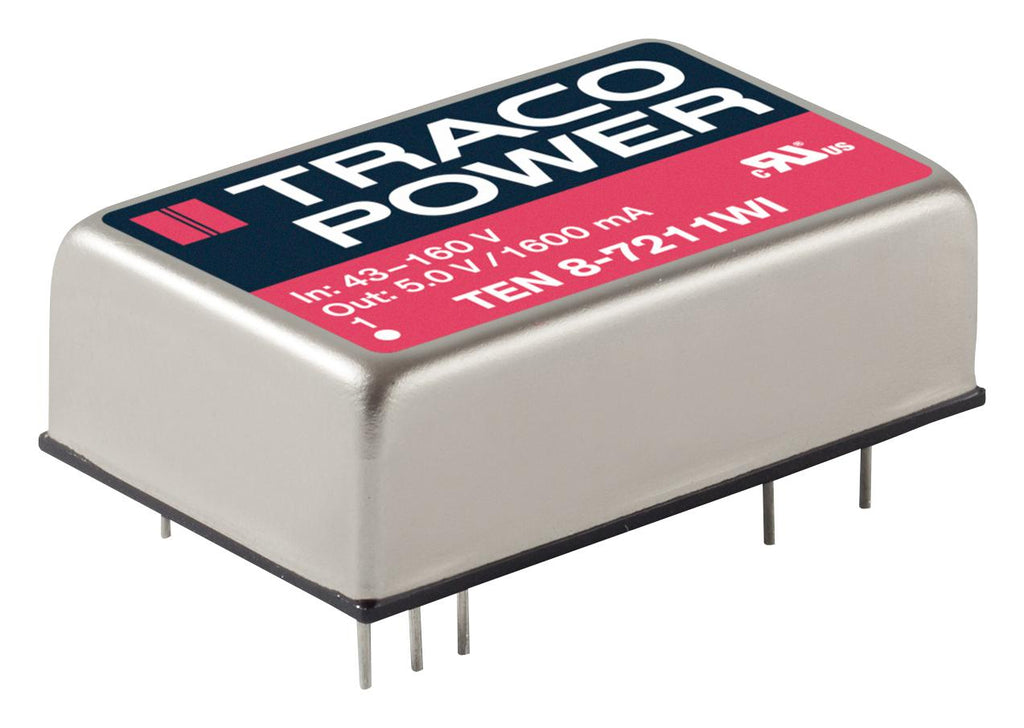

The TEN 8WI series high performance 8W DC/DC Converter Module features ultra wide 4:1 input voltage ranges with industry-standard footprint. Input voltages up to 160VDC, excellent EMC characteristics and EN 50155 approval make this device the best choice for many demanding applications in railroad and transportation systems. Further standard features include remote ON/OFF, over voltage protection, under voltage lockout and short circuit protection.
- No minimum load required
- Shielded metal case with insulated base plate
- Lead free design, RoHS compliant
- Up to 88% high efficiency
- 4-wire Antivalent NPN and PNP output
- Yellow output LED, green/red bicolour READY/ERROR LED indicators
Applications
Signal Processing, Communications & Networking, Wireless, Test & Measurement, Industrial
Product details
| Power Supply Applications | ITE |
| Input Ratio | 4:1 |
| No. of Outputs | 1 Output |
| Output Current - Output 1 | 533mA |
| Output Current - Output 2 | - |
| Isolation Voltage | 1.5kV |
| DC / DC Converter Output Type | Fixed |
| Height | 10.2mm |
| Input Voltage DC Min | 18V |
| Product Range | TEN 8WI Series |
| DC / DC Converter Type | DIP |
| Output Power Max | 8W |
| Output Voltage - Output 1 | 15V |
| Output Voltage - Output 2 | - |
| Output Regulation | - |
| Input Voltage DC Nom | 48V |

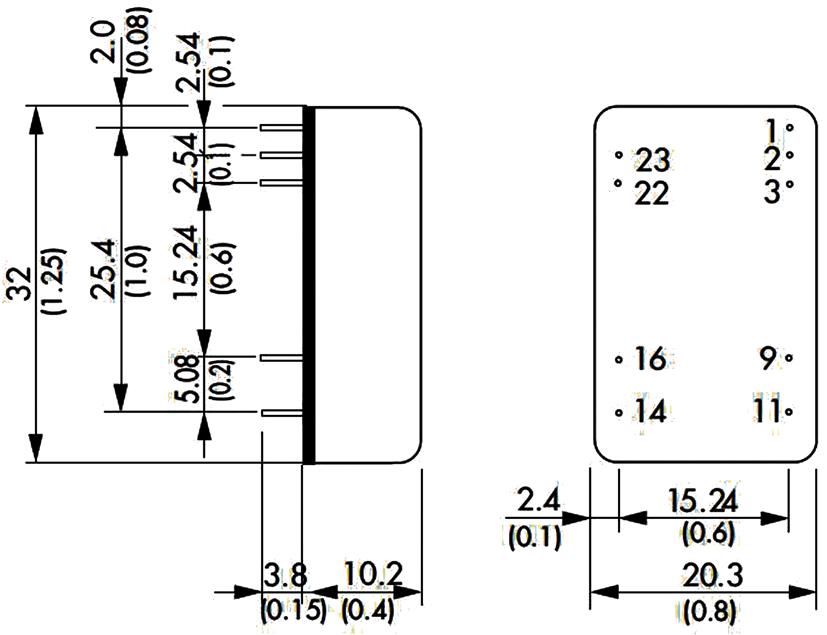

| Width | 20.8mm |
| Depth | 32mm |
| Input Voltage DC Max | 75V |
| SVHC | Lead (04-Feb-2026) |
Other details
| Brand | TRACO POWER |
| Part Number | TEN 8-4813WI |
| Quantity | Each |
| Application Note (4.20MB) EN | View or download |
| Miscellaneous (95.97KB) EN | View or download |
| Technical Data Sheet (45.00B) EN | View or download |
| CAD Multiple Formats (22.36KB) EN | View or download |
