Product Overview

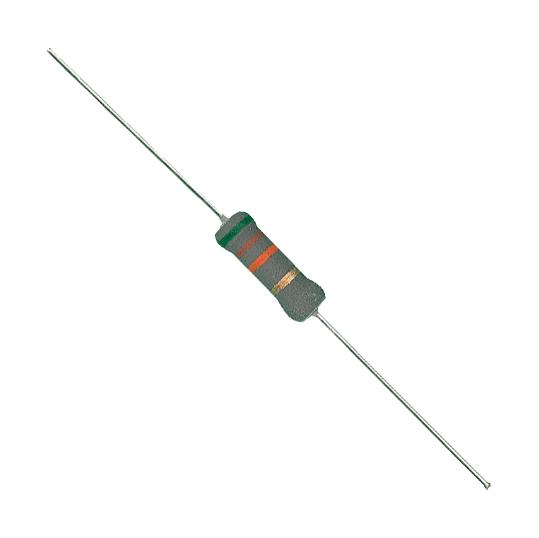

Type ROX series is a flame proof power metal oxide film resistor. The resistive element comprises a metal oxide film deposited on a ceramic former. The element is protected by a flameproof coating which will withstand overload conditions without flame or mechanical damage. It is recommended for use in applications such as line protection etc. Typical applications include capacitor pre-charge, capacitor discharge, balancing and snubber.
- High power with small size for space saving
- Excellent long term stability
- High surge/overload capability
- Controlled Temperature Capability
- Solvent resistant coat and code
Product details
| Resistance |
15kohm |
| Power Rating |
3W |
| Resistor Case / Package |
Axial Leaded |
| Resistor Technology |
Metal Oxide |
| Resistor Type |
Flame Proof |
| Product Length |
16mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Product Range |
ROX Series |
| Resistance Tolerance |
± 5% |
| Voltage Rating |
350V |
| Temperature Coefficient |
± 350ppm/°C |
| Product Diameter |
5.5mm |
| Product Width |
- |
| Operating Temperature Max |
235°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
TE CONNECTIVITY - NEOHM |
| Part Number |
ROX3SJ15K |
| Quantity |
Each |
| Technical Data Sheet (91.70KB) EN |
View or download |
