Product Overview
- 2:1 Input Range
- -40°C to +100°C Operating Temperature
- Overvoltage & Overcurrent Protection
- High Efficiency - up to 93%
- 1500 VDC Isolation
Applications
Power Management, DC/DC Converters
Product details
| Power Supply Applications |
ITE |
| Input Ratio |
2:1 |
| No. of Outputs |
1 Output |
| Output Current - Output 1 |
4A |
| Output Current - Output 2 |
- |
| Isolation Voltage |
1.6kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
10.2mm |
| Input Voltage DC Min |
9V |
| Product Range |
JCK20 Series |
| DC / DC Converter Type |
DIP |
| Output Power Max |
20W |
| Output Voltage - Output 1 |
5V |
| Output Voltage - Output 2 |
- |
| Output Regulation |
Regulated |
| Input Voltage DC Nom |
12V |
| Width |
25.4mm |
| Depth |
50.8mm |
| Input Voltage DC Max |
18V |
| SVHC |
No SVHC (15-Jan-2018) |
Other details
| Brand |
XP POWER |
| Part Number |
JCK2012S05 |
| Quantity |
Each |
| Technical Data Sheet (288.92KB) EN |
View or download |
| Certificate of Conformity (143.46KB) EN |
View or download |

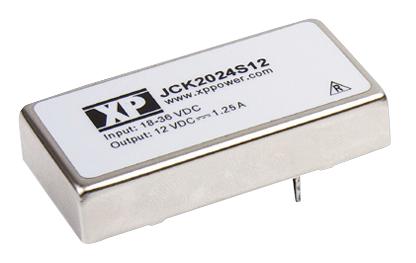

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
