Description
Product Overview

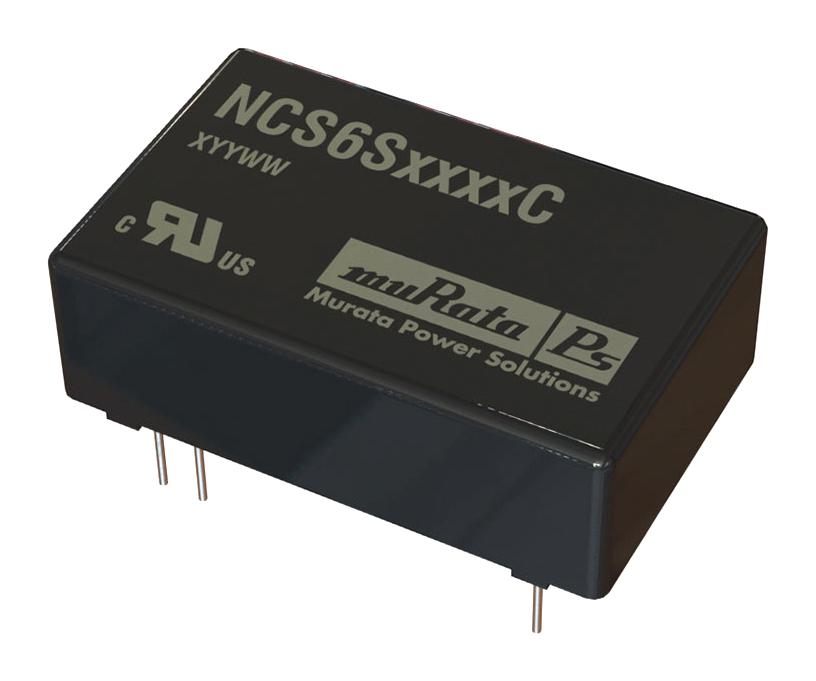

The NCS6S4805C is an isolated 4:1 input DC/DC Converter offers single output voltage from input voltage range of 12V. The device is housed with a standard pin-out. The device is suitable for improved EMI shielding and is also encapsulated for superior thermal performance.
- No electrolytic capacitors
- Low noise
- Under voltage lockout
- Current fold back
- 30mVp-p Typical ripple and noise
- 80% Typical efficiency
Applications
Communications & Networking, Industrial, Automation & Process Control, Power Management
Product details
| Power Supply Applications | ITE |
| Input Ratio | 4:1 |
| No. of Outputs | 1 Output |
| Output Current - Output 1 | 1.2A |
| Output Current - Output 2 | - |
| Isolation Voltage | 1.5kV |
| DC / DC Converter Output Type | Fixed |
| Height | 10mm |
| Input Voltage DC Min | 18V |
| Product Range | NCS6 Series |
| DC / DC Converter Type | DIP |
| Output Power Max | 6W |
| Output Voltage - Output 1 | 5V |
| Output Voltage - Output 2 | - |
| Output Regulation | Regulated |
| Input Voltage DC Nom | 48V |
| Width | 20mm |
| Depth | 32mm |
| Input Voltage DC Max | 75V |
| SVHC | Lead (17-Jan-2022) |
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | NCS6S4805C |
| Quantity | Each |
| Technical Data Sheet (276.11KB) EN | View or download |
| 3D Product Image (329.56KB) EN | View or download |
| Product Change Notice (159.78KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
