Product Overview
ITT CANNON KPT06E12-8SF97 Circular Connector, KPT Series, MIL-DTL-26482 Series I, Straight Plug, 8 Contacts, Solder Socket
Product details
| Product Range |
KPT Series |
| Circular Connector Shell Style |
Straight Plug |
| Circular Connector Contact Type |
Solder Socket |
| Insert Arrangement |
12-8 |
| Connector Body Plating |
Olive Drab Chromate over Cadmium |
| Contact Plating |
Gold |
| Service Class |
Environmentally Sealed |
| Equivalent Military Specification |
MIL-DTL-26482 Series I |
| No. of Contacts |
8Contacts |
| Coupling Style |
Bayonet |
| Connector Body Material |
Aluminium Alloy Body |
| Contact Material |
Copper Alloy |
| Insert Rotation |
N |
| SVHC |
No SVHC (17-Dec-2014) |
Other details
| Brand |
ITT CANNON |
| Part Number |
KPT06E12-8SF97 |
| Quantity |
Each |
| Technical Data Sheet (6.05MB) EN |
View or download |

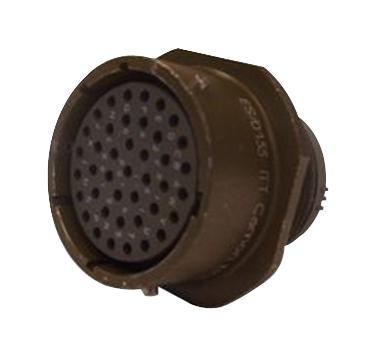

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
