Description
Product Overview

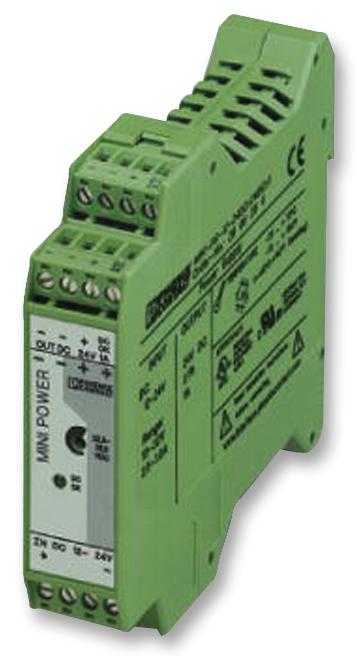

The MINI-PS-12-24DC/24DC/1 is a 7.5W 24V 1A DC/DC converter DIN rail mounted MINI Power Supply Unit for MCR technology, DC/DC converters alter the voltage level, regenerate the voltage at the end of long cables or enable the creation of independent supply systems by means of electrical isolation.
- Electrical isolation for setting up independent supply systems
- Constant voltage output voltage regenerated even at end of long cables
- Pluggable screw connection
- -25 to 70°C Operating temperature range
- IP20 Protection rating
Applications
Power Management
Product details
| Power Supply Applications | ITE |
| Output Power Max | 24W |
| Output Voltage - Output 1 | 24V |
| Output Voltage - Output 2 | - |
| Output Regulation | - |
| DC / DC Converter Output Type | Fixed, Adjustable |
| Width | - |
| Depth | - |
| Input Voltage DC Max | 32V |
| SVHC | No SVHC (04-Feb-2026) |
| Input Ratio | 3:1 |
| No. of Outputs | 1 Output |
| Output Current - Output 1 | 1A |
| Output Current - Output 2 | - |
| Isolation Voltage | 1.5kV |
| Input Voltage DC Nom | - |
| Height | - |
| Input Voltage DC Min | 10V |
| Product Range | MINI Power Series |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1851708 |
| Quantity | Each |
| Technical Data Sheet (85.82KB) EN | View or download |
| CAD Multiple Formats (162.55KB) EN | View or download |
