Description
Product Overview

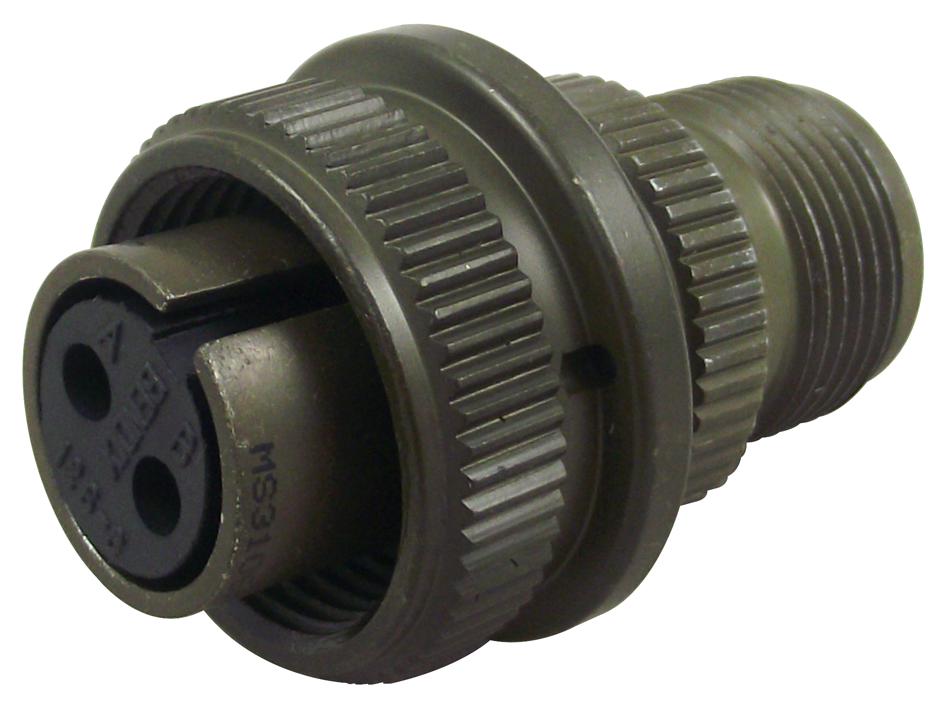

The MS3106A12S-3S is a 2-contact military standard Circular Connector with silver-plated copper contacts, straight plug, solid shell for general, non-environmental applications, 12S-3 insert arrangement and socket contact type. Shell components are fabricated from high grade aluminium alloy. Electrically conductive cadmium plate finish with an olive drab chromate after-treat offers corrosion resistance. Resilient neoprene inserts provides high dielectric strength, high arc resistance and resistance to vibration. This connector represents well-proven electrical capability at an acceptable cost for most equipment where durability is important. MIL-C-5015 features threaded coupling, single key and keyway polarization representing maximum simplicity in design. Suitable for ordnance and shipboard installation where mechanical forces and physical parameters are not subject to extreme or rapid environmental changes.
- Medium to heavy weight cylindrical
- Durable and field-proven design
- 3000VAC (RMS) at Sea level operating voltage
- Split end bell service class
Applications
Aerospace, Defence, Military, Communications & Networking, Computers & Computer Peripherals
Product details
| Military Specification | MIL-DTL-5015 Series |
| Circular Connector Contact Type | Solder Socket |
| Insert Arrangement | 12S-3 |
| Contact Material | Brass, Copper Alloy |
| Insert Rotation | N |
| Circular Connector Shell Style | Straight Plug |
| Coupling Style | Threaded |
| Connector Body Material | Aluminium Alloy Body |
| Contact Plating | Silver |
| Service Class | General Duty |
Other details
| Brand | AMPHENOL INDUSTRIAL |
| Part Number | MS3106A12S-3S.. |
| Quantity | Each |
| Technical Data Sheet (898.23KB) EN | View or download |
| Manufacturer Catalogue (2.12MB) EN | View or download |
