Description
Product Overview

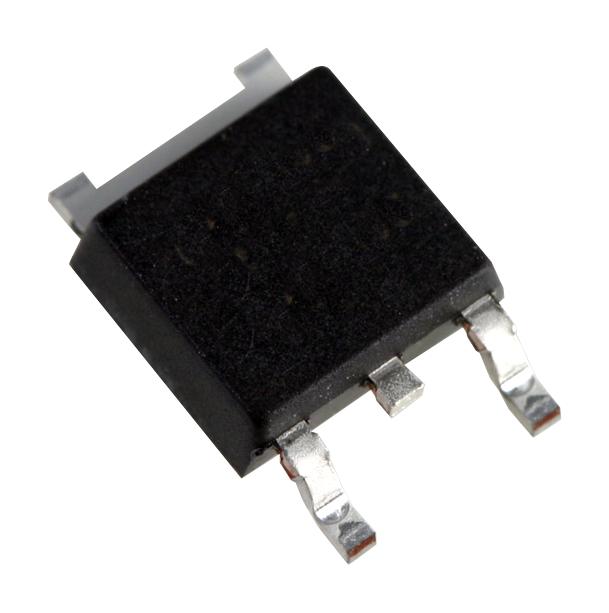

The LM317MBDTG is an adjustable 3-terminal output Positive Voltage Regulator capable of supplying in excess of 500mA over an output voltage range of 1.2 to 37V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow-out proof. This regulator serves a wide variety of applications including local, on card regulation. This device can also be used to make a programmable output regulator or by connecting a fixed resistor between the adjustment and output, the regulator can be used as a precision current regulator.
- Internal thermal overload protection
- Internal short-circuit current limiting
- Output transistor safe area compensation
- Floating operation for high voltage applications
- Eliminates stocking many fixed voltages
Applications
Industrial, Power Management
Product details
| Output Type | Adjustable |
| Output Voltage - Nom | - |
| Output Voltage Max | 37V |
| Input Voltage Max | 40V |
| Output Current Max | 500mA |
| IC Case / Package | TO-252 (DPAK) |
| IC Mounting | Surface Mount |
| Operating Temperature Max | 125°C |
| MSL | - |
| No. of Outputs | 1Outputs |
| Output Voltage Min | 1.2V |
| Input Voltage Min | - |
| Product Range | - |
| Max Output Current | 500mA |
| No. of Pins | 3Pins |
| Operating Temperature Min | -40°C |
| Qualification | - |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | ONSEMI |
| Part Number | LM317MBDTG |
| Quantity | Each |
| Product Change Notice (530.30KB) EN | View or download |
| Technical Data Sheet (138.22KB) EN | View or download |
