| ₹ 114.33 includes GST and import duties. | |
| B2B customers can avail ₹ 17.44 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview
The LD1117V33C is a low drop Voltage Regulator able to provide up to 800mA of output current, available even in adjustable version (VREF= 1.25V). Concerning fixed versions, are offered the following output voltages 1.2V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V. High efficiency is assured by NPN pass transistor. In fact in this case, unlike than PNP one, the quiescent current flows mostly into the load. Only a very common 10μF minimum capacitor is needed for stability. On chip trimming allows the regulator to reach a very tight output voltage tolerance, within ±1% at 25°C. The adjustable LD1117V33C is pin to pin compatible with the other standard. Adjustable voltage regulators maintaining the better performances in terms of drop and tolerance.
- Low Dropout Voltage (1V Typical)
- 2.85V Device Performances are Suitable for SCSI-2 Active Termination
- Adjustable Version Availability (VREF= 1.25V)
- Internal Current and Thermal Limit
- Available in ±1% (at 25°C) and 2% in Full Temperature Range
- Supply Voltage Rejection 75dB (Typical)
Applications
Power Management
Product details
| Output Type | Fixed |
| Input Voltage Max | 15V |
| Output Voltage Nom | 3.3V |
| Output Voltage Min | - |
| Polarity | Positive Output |
| Output Current Max | 800mA |
| Dropout Voltage Typ @ Current | 1.1V |
| IC Case / Package | TO-220 |
| Operating Temperature Min | -40°C |
| Product Range | 3.3V 800mA LDO Voltage Regulators |
| SVHC | No SVHC (25-Jun-2025) |
| Input Voltage Min | - |
| No. of Outputs | 1Outputs |
| Output Voltage - Nom | 3.3V |
| Output Voltage Max | - |
| Max Output Current | 800mA |
| Dropout Voltage - Typ @ Current | 1.1V |
| IC Mounting | Through Hole |
| No. of Pins | 3Pins |
| Operating Temperature Max | 125°C |
| MSL | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | LD1117V33C |
| Quantity | Each |
| Technical Data Sheet (1.60MB) EN | View or download |
| CAD CadSoft_EAGLE (2.29KB) EN | View or download |
| Product Change Notice (85.20KB) EN | View or download |

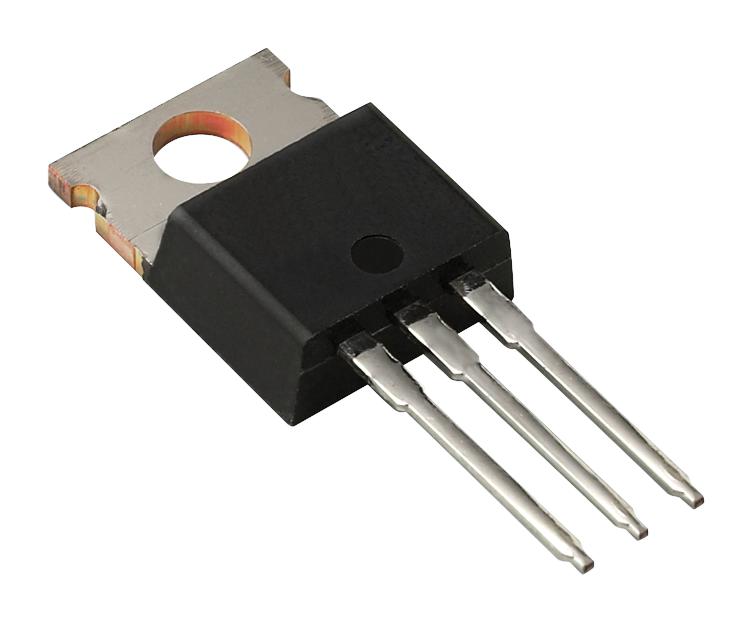

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 112.04 |
| 3-5 | ₹ 110.9 |
| 5-10 | ₹ 108.61 |
| 10+ | ₹ 106.33 |
Bulk discount will be automatically applied during checkout based on quantity.
